  11. Audiopipe XV4V15 4 Way Crossover with 6 Channel Input & 8 Channel Output
Shop All Automotive Stereos & Video Players
Audiopipe

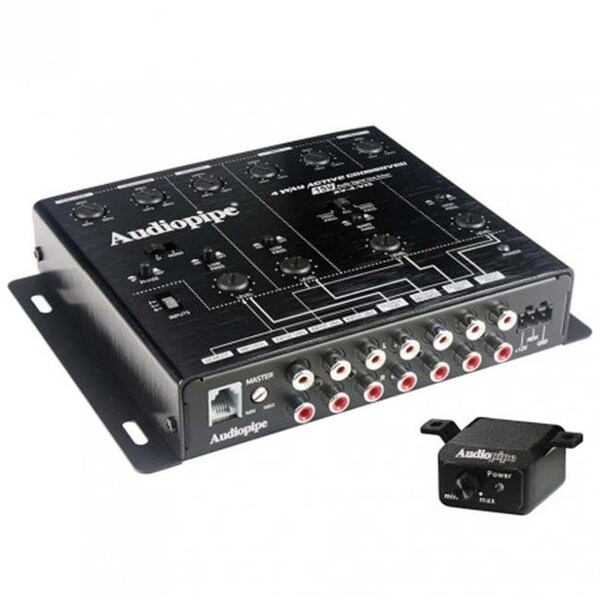

Audiopipe XV4V15 4 Way Crossover with 6 Channel Input & 8 Channel Output

product price: $98.25
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Description

Features
  • 4-Way Active Crossover
  • 15 V Audio Signal Line Driver
  • 6 channels input/8 channels output
  • Master gain control
  • Independent gain control per pair of channels
  • HP, ALL and BP switchable
  • Mono and Stereo switch
  • 2/4/6 channel input selector
  • 15 volts RMS line-driver
  • On/Off switch per pair of outputs for easy fine tuning
  • Separate inputs for front, rear and subwoofer
  • Front and rear high pass outputs
  • Non-fade low pass output
  • Adjustable low pass gain
  • Ground loop isolation input circuit
Specifications
  • High & Tweeter: 1KHz - 12KHz @ 12dB/octave
  • Midbass: 40Hz - 90Hz @ 12dB/octave
  • Subwoofer: 40Hz - 90Hz @ 12dB/octave
  • Subsonic Filter: 10Hz - 30Hz @ 18dB/octave
  • Signal to Noise Ratio: -105dB A-weighted
  • Total Harmonic Distortion: <0.04%
  • Stereo Separation: >70dB
  • Dimension: 9" H x 3" W x 9.25" L
  • Weight: 2.4 lbs
