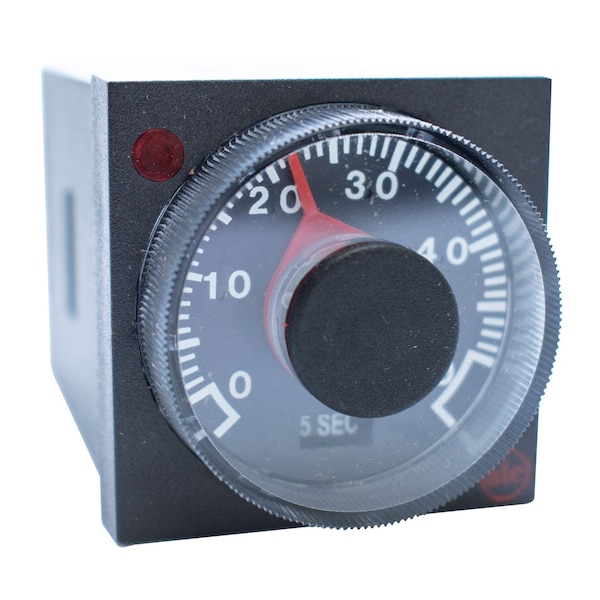

417B Series 1/16 DIN True Off-Delay Timer

The 417B True Off-Delay Timer is designed for the most rugged industrial environments. It offers exceptional electrical noise immunity, with excellent setting and repeat accuracy.Each 417B can be powered from 24VAC to 240VAC and 24VDC, greatly simplifying ordering and inventory management.The 48mm2 1/16 DIN housing is compact and watertight when panel-mounted. The 417B is mounted in an 8-pin octal or 11-pin round socket. The 417B can be panel-mounted with an optional mounting clip.A large time-setting knob is provided for easy adjustment by operator.The range select switch is located on the side of the unit; therefore, once panel-mounted, the switch is not accessible to the operator. This tamper-proof feature prevents unauthorized or hazardous changes to the timing range.The 417's high intensity LED turns on when power is applied to the timer. It turns off during timing.
