Shop All Ball Transfers
Ashland Conveyor
Ball Transfer, Cntrsunk, 1In Ball Dia
Mfr # BT CF 2H 1DIA 75 SS/SS
Zoro # G6983383
product price: $34.99
/ea
$34.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Ball Transfer Mount Type Countersunk Flange
- Ball Material Stainless Steel
- Housing Material - Ball Transfers Stainless Steel
- Projection 3/4 in
- Housing Diameter 1 3/4 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Ashland Conveyor
- MFR # BT CF 2H 1DIA 75 SS/SS
- Zoro # G6983383
- Country of Origin United States
- Category Ball Transfers

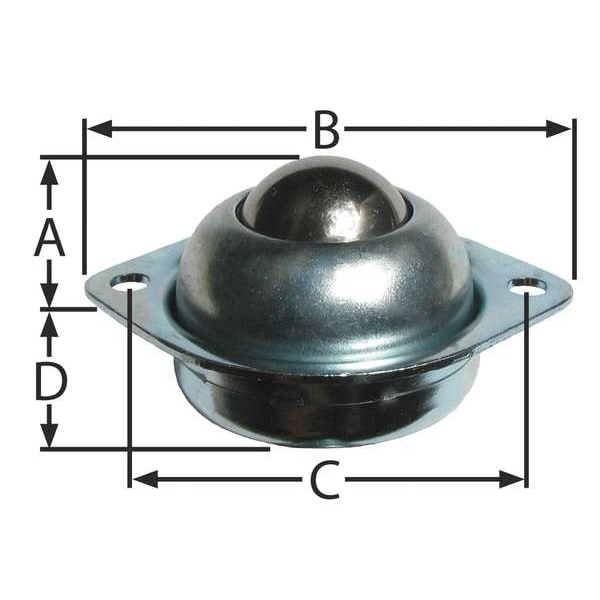

Dimensions
Housing Diameter | 1 3/4 in |
Ball Diameter - Ball Transfer | 1 in |
Width (In.) | 2-1/8 |
Length (In.) | 2-3/4 |
Dimension D (In.) | 1/2 |
Dimension C (In.) | 2-3/16 |
Dimension B (In.) | 2-3/4 |
Ball Dia. (In.) | 1 |
Dimension A (In.) | 3/4 |
Height (In.) | 1-1/4 |
Ball Diameter | 1 in |
Details
Item | Ball Transfer |
Ball Transfer Mount Type | Countersunk Flange |
Ball Material | Stainless Steel |
Housing Material - Ball Transfers | Stainless Steel |
Projection | 3/4 in |
Ball Load Capacity | 75 lb |
Mounting Style | 7/32" |
Working Load Limit (Lb.) | 75 |
Type | Countersunk Flange |
Housing Material | Stainless Steel |
Description
Ball Transfer, 1 in Ball Diameter - Ball Transfer, 75 lb Ball Load Capacity, Stainless Steel, Countersunk Flange Ball Transfer Mount Type, 3/4 in Projection, 1 3/4 in Housing Diameter, Stainless Steel Housing Material
