Shop All Solenoid Air Control Valves
Aro

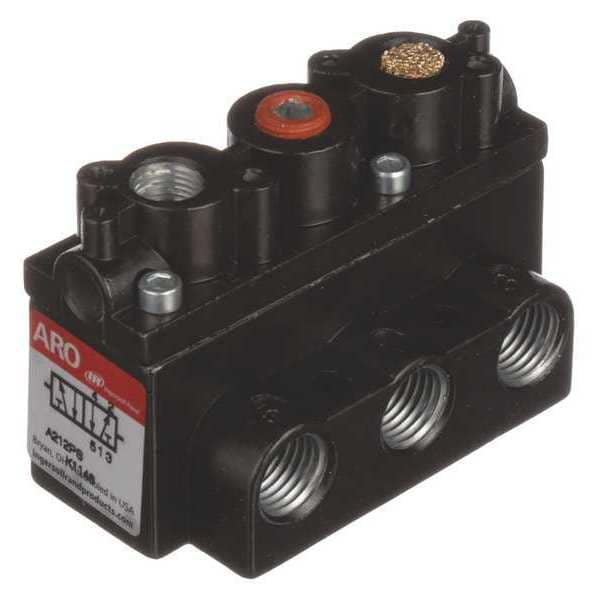

Valve, Air, Pilot, 1/8 In

product price: $109.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 4-Way/2-Position
  • Valve Port Size 1/8 in
  • Valve Actuator / Return Pilot / Spring
  • Coefficient of Volume 0.9
  • Max. CFM - Valves 30 cfm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Valve Port Size 1/8 in
Length (In.) 2 15/16 in
Pilot Port Size NPT (In.) 1/8 (F)
Height (In.) 1 13/16 in
Width (In.) 1 15/16 in
Port Size (In.) 1/8

Details

Item Pilot Air Control Valve
Valve Ways and Positions 4-Way/2-Position
Valve Actuator / Return Pilot / Spring
Coefficient of Volume 0.9
Max. CFM - Valves 30 cfm
CFM 30
Pilot Pressure 50 psi
Vacuum Rated to 29 in Hg
Actuator/Return Pilot/Spring
Cycles per Minute Up to 600
Max. Operating PSI 150 psi
Max. Temp. Range (F) 0 to 180
Uses For Air or Inert Gas
Type Body Ported
Number of Positions 2
Number of Ways 4

Description

Pilot Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Actuator / Return Pilot / Spring, Valve Port Size 1/8 in, Max. CFM - Valves 30 cfm, Max. Operating PSI 150 psi, Pilot Pressure 50 psi, Pilot Port Size NPT (In.) 1/8 (F), Max. Temp. Range (F) 0 to 180, Vacuum Rated to 29 in Hg, Coefficient of Volume 0.9, Cycles per Minute Up to 600, Length (In.) 2 15/16 in, Width (In.) 1 15/16 in, Height (In.) 1 13/16 in, Uses For Air or Inert Gas, Pilot Air Control Valve
