Aro

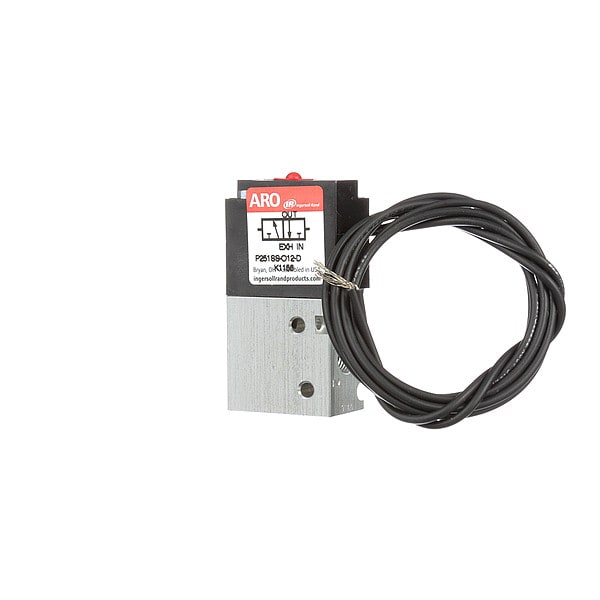

Solenoid Air Control Valve, 1/8 In, 24VDC

product price: $73.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 3-Way/2-Position
  • Voltage 24V DC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.144
  • Pipe Size 1/8 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pipe Size 1/8 in
Overall Height 2 1/2 in
Overall Width 1 in
Overall Length 1 1/4 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 3-Way/2-Position
Voltage 24V DC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.144
Max. CFM - Valves 6.9 cfm
Operational Pressure Range 0 to 120 psi
NEMA Classification NEMA 4
Power Consumption 4.5 W
Air Valve Type 3-Way, 2-Position
Electrical Connections Lead Wire
Ambient Temp. Range 32 Degrees to 125 Degrees F
Override Non-Locking Manual
CFM 6.9
Actuator/Return Solenoid/Spring
Body Style Body Ported
Pressure Range 0 to 120 psi
Shifting Technology Direct

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/8 in, Max. CFM - Valves 6.9 cfm, Operational Pressure Range 0 to 120 psi, NEMA Classification NEMA 4, Body Style Body Ported, Coefficient of Volume 0.144, Lead Wire Electrical Connections, Shifting Technology Direct, Power Consumption 4.5 W, Ambient Temp. Range 32 Degrees to 125 Degrees F, Override Non-Locking Manual, Overall Height 2 1/2 in
