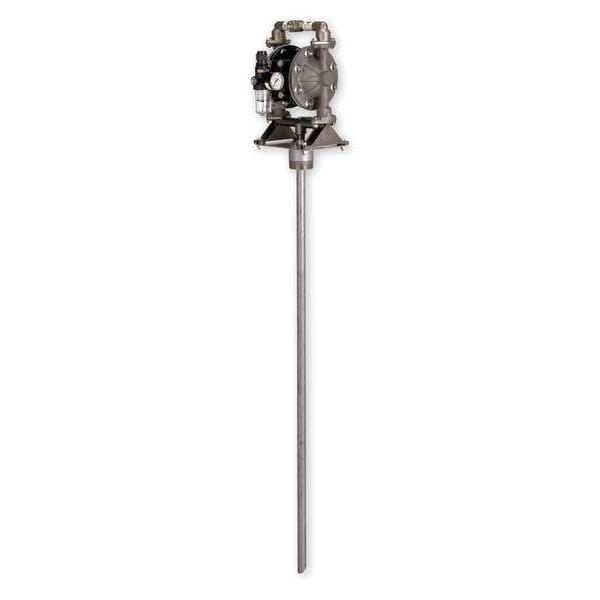

Drum Pump, Polyurethane Seal, 14.4 GPM

Mfr # DAB05-PPUU-2-F
Zoro # G2309702

$842.99

/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Suction Tube Length 38 in
For Media Type Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Stoddard Solvent, Water
For Container Size 55 gal
Max. Flow Rate 14.4 gpm
Air Inlet Size 1/4 in FNPT

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Aro
MFR # DAB05-PPUU-2-F
Zoro # G2309702
Country of Origin United States
Category Hand Drum Pumps

Dimensions

Suction Tube Length	38 in
For Container Size	55 gal
Air Inlet Size	1/4 in FNPT
Inlet Size	1/2" BSP
Discharge Tube Outlet ID Size	1/2"
Discharge Tube Outlet OD Size	3/4"
Hose Length	10 ft

Details

For Media Type	Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Stoddard Solvent, Water
Max. Flow Rate	14.4 gpm
Max. Viscosity	200 cps
Wetted Materials	Polypropylene, Polyurethane
Discharge Tube Outlet ID	1/2 in
Includes	10 ft EPDM Discharge Hose, Bung Adapter, Filter/Regulator
Metered	No
Discharge Tube Outlet OD	3/4 in
Includes Suction Tube	Yes
Ratio	1:1
For Use With	General Automotive Service Fluids such as Petroleum Based Oils
Max. Flow GPM	14.4
Seal Material	Polyurethane
Item	Air Operated Drum Pump
Delivers	200 CPS
Housing Material	Polypropylene
Discharge Tubing Material	Vinyl
Type	Twin Diaphragm Drum
Includes Spout	No
Includes Discharge Hose	Yes
Includes Nozzle	No
Not Recommended Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Biodiesel, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Housing Material - Pumps	Polypropylene
Compatible Chemicals	Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Fresh Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Stoddard Solvent (Mineral Spirits)
Power Source	Air
For Container Type	Drum
Grease	NT
Gear Lube	NT
Hose Tube Material	EPDM

Description

Air Operated Drum Pump, Hose Length 10 ft, Includes Discharge Hose Yes, Max. Viscosity 200 cps, Includes Suction Tube Yes, Includes Nozzle No, Includes Spout No
