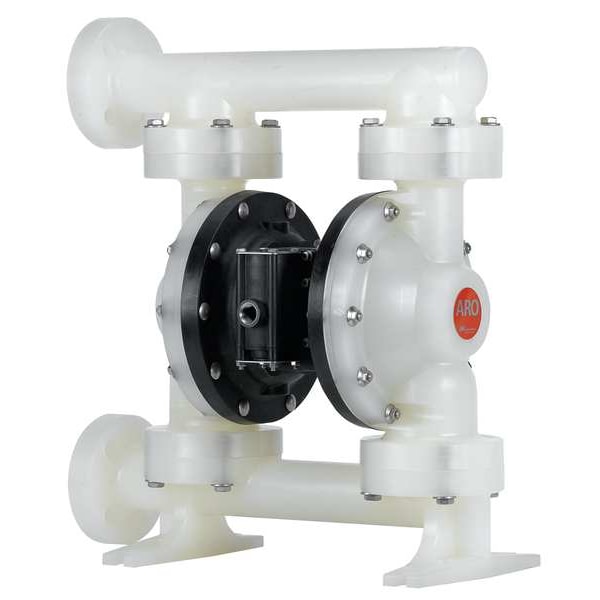

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene

Mfr # PD20P-FPS-PAA
Zoro # G0687355

$5,173.99

/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 184 gpm
Pump Operation Type Air
Max. Temp - Pumps 150 Degrees F

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Aro
MFR # PD20P-FPS-PAA
Zoro # G0687355
Country of Origin United States
Category Diaphragm Pumps

Dimensions

Inlet/Outlet Size	2 in
Air Inlet Size	3/4 in FNPT
Manufacturers Warranty Length	5 yr
Max. Dia. Solids	1/4 in
Height	31 7/8 in
Width	22 1/4 in
Length	24 13/16 in
Overall Width	22.3 in
Overall Length	24.2 in
Overall Height	28.7 in
Air Intake Connection Size	3/4 in
Solid Diameter (Maximum)	0.25 in
Overall Size	24.2 in x 22.3 in x 28.7 in
Fluid Connection Size	2 in
Media Discharge Size	2 in
Media Intake Connection Size	2 in
Media Intake Size	2 in
Media Discharge Connection Size	2 in

Details

Housing Material - Pumps	Polypropylene
Diaphragm Material - Pumps	Santoprene(R)
Max. Flow	184 gpm
Item - Air Operated Pumps	Double Diaphragm Pump
Pump Operation Type	Air
Max. Temp - Pumps	150 Degrees F
Connection Style	Flange
Agency Compliance	CE, REACH, RoHS
Max. Flow GPM	184 gpm
Valve Type	Ball
Max. Temp.	150 Degrees F
Max. Operating Pressure	120 psi
Item	Double Diaphragm Pump
Body Material	Polypropylene
Self-Priming Dry	14 ft
Check Seat Material	Polypropylene
Max. Pressure (PSI)	120
Manifold Connection	Single Port
Ball Material	Santoprene(R)
Operation Type	Air Operated
Diaphragm Material	Santoprene
Standards	CE Certified, NEC
Flow Rate @ 60 psi	131 gpm
Fluid Discharge Connection	2 in Flange
Air Intake Pressure (Maximum)	120 psi
Air Intake Connection Type	Flange
NPSHr	35 ft of head
Flow Rate (Maximum)	182 gpm
Media Temperature (Minimum)	-40 Degrees F
For Use With Potable Systems	Yes
Media Intake Location	Center
Media Intake Connection Type	Flange
Wetted Housing Material	Polypropylene
Flow Rate @ 70 psi	140 gpm
Operating Pressure (Maximum)	120 psi
Nameplate Voltage	N
Air Consumption (Maximum)	140 scfm
Media Discharge Type	Flange
Manifold Connection Type	Flange
Flow Rate @ 100 psi	172 gpm
Feet of Head (Maximum)	289 ft
Series Family	EXP
Media Discharge Connection Type	Flange
Port Location	Center Center
Fluid Connection Type	Flange
Series	PX20P
Valve Material	Santoprene
Chemical Compatibility	Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Non-Wetted Housing Material	Plastic
Priming	Self-Priming
Fluid Intake Connection	2 in Flange
Air Inlet	3/4 in Flange
Valve Material	Santoprene
Viscosity (Maximum)	50,000 cps
Flow Rate @ 90 psi	165.6 gpm
Media Discharge Location	Center
Media Intake Type	Flange
Pump Assembly Type	Bolt
Flow Rate @ 80 psi	156 gpm
Flow Rate @ 40 psi	95 gpm
Housing Material	Polypropylene
Flow Rate @ 50 psi	117.5 gpm
Mounting Hardware Material	Stainless Steel
Flow Rate @ 120 psi	182 gpm
Media Temperature (Maximum)	225 Degrees F

Description

Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type Flange, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 182 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Flange, Media Discharge Location Center, Media Intake Connection Size 2 in, Media Intake Connection Type Flange, Media Intake Location Center
