Shop All Diaphragm Pumps
Aro

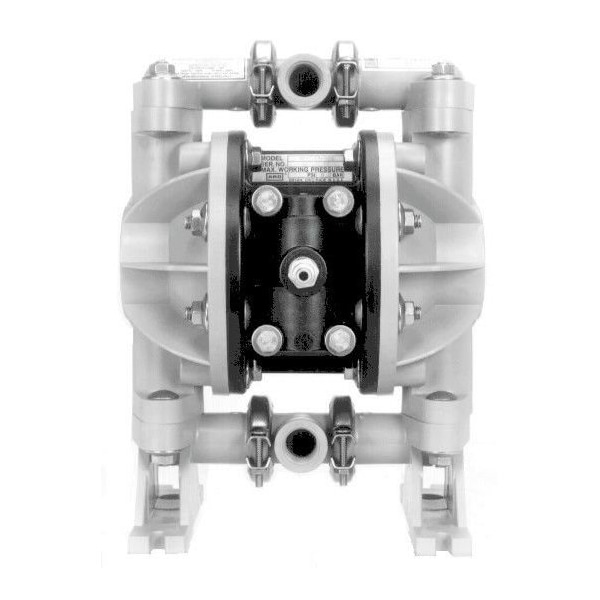

Diaphragm Pump, Pvdf/Pvdf/Ptfe/Ptfe, 9.5

product price: $2,055.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Diaphragm Material PTFE, Santoprene
  • Standards ANSI S1.13-1971, CAGI-PNEUROP S5.1
  • Check Seat Material PVDF
  • Manifold Connection Multiport
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Width 6.4 in
Overall Length 8.5 in
Overall Height 11.3 in
Air Intake Connection Size 1/4 in
Media Discharge Connection Size 1/2 in
Solid Diameter (Maximum) 0.09 in
Media Intake Connection Size 1/2 in

Description

Diaphragm Pump, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material PVDF, Diaphragm Material PTFE, Santoprene, Flow Rate (Maximum) 13 gpm, Manifold Connection Multiport, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Side, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPTF, Media Intake Location Bottom, Media Temperature (Maximum) 225 Degrees F, Operating Pressure (Maximum) 100 psi

Restrictions
