  9. DiaphPmp, NPTF, PTFE/TPV/Alum, 3/4in, 172gpm
Shop All Diaphragm Pumps
Aro

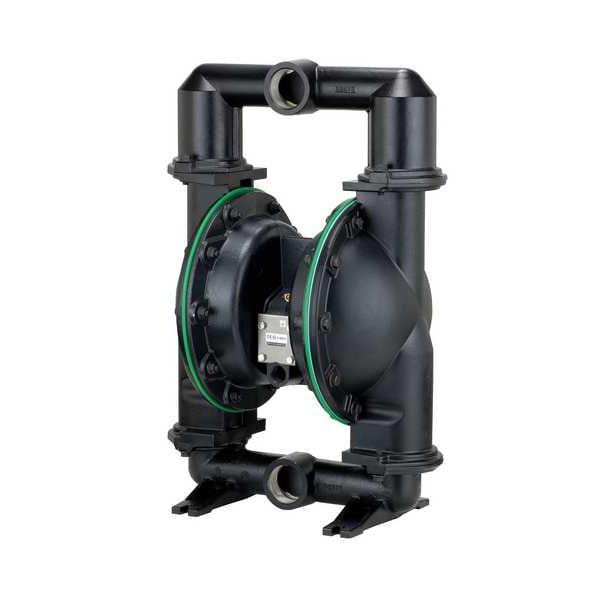

DiaphPmp, NPTF, PTFE/TPV/Alum, 3/4in, 172gpm

product price: $2,965.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps PTFE - Santoprene(R)
  • Max. Flow 172 gpm
  • Pump Operation Type Air
  • Inlet/Outlet Size 2 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Inlet/Outlet Size 2 in
Air Inlet Size 3/4 in NPTF
Height 26 3/8 in
Length 17 15/16 in
Max. Dia. Solids 1/4 in
Width 22 3/4 in
Overall Width 22.8 in
Overall Length 17.9 in
Overall Height 26.4 in
Fluid Connection Size 2 in
Solid Diameter (Maximum) 0.25 in
Media Intake Size 2 in
Media Intake Connection Size 2 in
Overall Size 17.9 in x 22.8 in x 26.4 in
Air Intake Connection Size 3/4 in
Media Discharge Connection Size 2 in
Media Discharge Size 2 in

Description

Diaphragm Pump,172Gpm,Ptfe/Ptfe,2 In.,66625, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material PTFE, Flow Rate (Maximum) 172 gpm, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Intake Connection Size 2 in, Media Intake Connection Type NPTF, Operating Pressure (Maximum) 120 psi, Solid Diameter (Maximum) 0.25 in, Valve Material PTFE, Wetted Housing Material Aluminum, Standards ATEX
