This Product is Discontinued

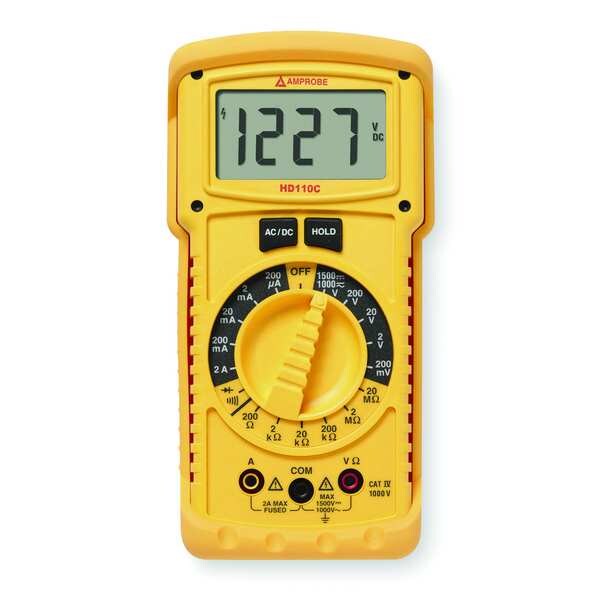

Digital Multimeter, 1,000 Max. AC Volts, 1,500 Max. DC Volts, 2 Max. AC Amps, 2 Max. DC Amps (Discontinued)

Mfr # HD110C
Zoro # G1971304

Free Shipping & Returns

This Product is Discontinued

Shop for all Digital Multimeters

Key Features

Multimeter Style Full Size - General Features
Instrument Counts 1,999
Basic DC Accuracy +/-0.10% of Reading + 2 Digits
Instrument Safety Rating CAT IV 1000V
Max. AC Volts 1,000

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Amprobe
MFR # HD110C
Zoro # G1971304
UPC #
095969780742
Country of Origin Taiwan, Province of China
Category Digital Multimeters

Dimensions

Manufacturers Warranty Length	1 yr
Overall Width	4 in
Depth	2.3 in
Overall Height	7.9 in
Battery Size	9V

Details

Multimeter Style	Full Size - General Features
Item	Digital Multimeter
Instrument Counts	1,999
Basic DC Accuracy	+/-0.10% of Reading + 2 Digits
Instrument Safety Rating	CAT IV 1000V
Max. AC Volts	1,000
Max. DC Volts	1,500
Max. AC Amps	2
Max. DC Amps	2
Audible Continuity	Yes
Max. Ohms	20 megohm
Standards	IEC 6F22, JIS 006P, NEDA 1604
Includes	Batteries (Installed), Magne-Grip(TM) Holder with Magnetic Hanging Strap, Test Leads
Temp. Range	-4 Degrees to 1832 Degrees F
Auto Power Off	Yes
AC Response	Average
Series	AMPROBE (R) HD110C
Calibration Certificate Included	No
Display	LCD
Battery Type	9V Alkaline
Data Hold	Yes
Diode Test	Yes
Special Features	Automatic Polarity Indication, CAT IV 1000 V Rated, Constructed with Drop-Resistant Housing and PCB Mounting, Display 3-1/2 Digit LCD, 1999 Counts, with Annunciators, Flame Retardant, High-Impact Thermoplastic Case, Highest Voltage Capability, Measuring to 1500 V DC and 1000 V Ac, Includes High Voltage Test Leads with Threaded Alligator Clips, Low Battery Indication, Magne-Grip(TM) Holster, Frees Both Hands for Work, Resistance Ranges 200 ohm, 2 kiloohm, 20 kiloohm, 200 kiloohm, 2 megaohm, 20 megaohm, Special Sealing for Environment and Water Resistance: IP67 Rated, Standard 9 V Battery, Neda 1604, JIS 006P,IEC 6F2
Data Logging	No
Auto Ranging	No
Intrinsically Safe	No
Calibration Certificate	Not Included
Battery Voltage	9V
Maximum AC Voltage Measurement	1,000 V
DC Current Measurement Resolution	200 uA
Removable Screen	No
Minimum AC Voltage Measurement	200 V
AC Current Measurement Resolution	200 uA
Parameters Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Minimum DC Current Measurement	200 uA
Battery Access	Yes
Resistance Measurement Accuracy	+/-2%
AC Voltage Measurement Resolution	2 V
Minimum AC Current Measurement	200 uA
Display Type	LCD
Basic DC Voltage Accuracy	+/-0.10% + 2 Digits
Style	Full Size
Maximum Storage Temperature	140 Degrees F
Waterproof	Yes
Minimum Temperature Measurement	-4 Degrees F
Maximum AC Current Measurement	10 A
Basic AC Voltage Accuracy	+/- (0.75 % rdg + 3 dgts)
Software Included	No
Battery Chemistry	Alkaline
Thermal Imaging	No
Resistance Measurement Resolution	200 ohm
Batteries Included	Yes
Maximum DC Current Measurement	10 A
AC Response Calculation	Average
Basic DC Current Accuracy	+/- (0.35 % rdg + 1 dgt)
Maximum Temperature Measurement	1,832 Degrees F
Maximum Resistance Measurement	20 megaohm
Maximum DC Voltage Measurement	1,500 V
Minimum Operating Temperature	32 Degrees F
DC Voltage Measurement Resolution	200 V
Maximum Operating Temperature	122 Degrees F
Bluetooth Compatible	No
IP Rating	IP67
Computer Interface Connection Type	None
Minimum Resistance Measurement	200 ohm
Current Leakage Testing	No
Basic AC Current Accuracy	+/- (0.9 % rdg + 3 dgts)
Minimum Storage Temperature	-4 Degrees F
Weight	20 oz
Multimeter Features	Dustproof, Waterproof
Dustproof	Yes
Minimum DC Voltage Measurement	200 V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (0.75 Percent rdg + 3 dgts), Basic DC Voltage Accuracy +/-0.10 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy +/- (0.35 Percent rdg + 1 dgt), Instrument Safety Rating CAT IV 1000V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,500 V, Instrument Counts 1,999
