DC to DC Converter, 24V DC to 12V DC, 0 Hz
Mfr # SDC-60
Zoro # G004111419
product price: $474.99
/ea
Free Shipping & Returns
$474.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Converts 24V DC to 12V DC
- Hz 0 Hz
- Height 98 mm
- Width 88 mm
- Depth 151 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand All Power Supply
- MFR # SDC-60
- Zoro # G004111419
- UPC # 622988067501
- Country of Origin China
- Category Voltage Converters
Dimensions
Height | 98 mm |
Width | 88 mm |
Depth | 151 mm |
Details
Item | DC to DC Converter |
Converts | 24V DC to 12V DC |
Hz | 0 Hz |
Description

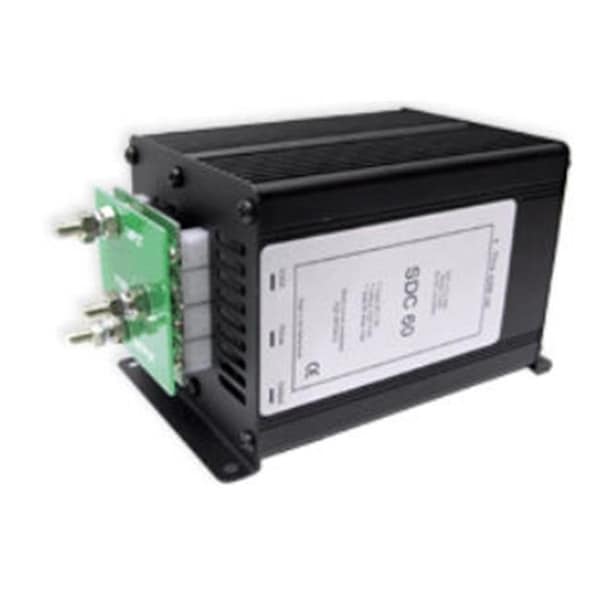

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.
Specifications.
Dimensions: 7 x 3.6 x 3.5 Inches.
Applications.
Earth Moving Equipment.
Heavy Trucks.
Buses.
Marine Vehicles.
CB Radios.
12 Volt Lighting Systems.
AM/FM Sound Systems.
Design Features.
Advanced switchmode design.
Mount in almost any location.
Compact and light weight.
Reverse polarity protection.
High efficiency.
Cycle by cycle current limiting circuit.
Overvoltage protection.
Short circuit protection.
Specifications.
Applications.
Design Features.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
- Hazardous material
