Alfa Laval

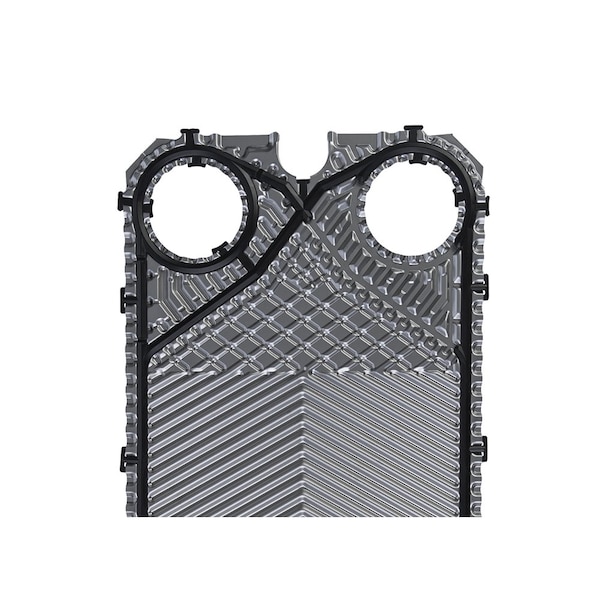

304/0.4/H Channel plate with EPDM Glued gasket, 4 holed
Mfr # M10-M
Zoro # G802753354
product price: $119.99
/ea
Sold in multiples of 10 for $1,199.90
Free Shipping & Returns
$1,199.90
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Plate
- Construction Material ALLOY 304
- Color 1Grey
- Weight (Lbs.) 1.141
- Gasket Material EPDM
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Alfa Laval
- MFR # M10-M
- Zoro # G802753354
- Country of Origin Sweden
- Category Heat Exchangers
Details
Type | Plate |
Construction Material | ALLOY 304 |
Color | 1Grey |
Weight (Lbs.) | 1.141 |
Gasket Material | EPDM |
Gasket Profile | Peak |
Plate Type | M10-M |
Design Function | Channel Plate |
Remarks | Remember to also buy end plate I and II. |
Gasket Attachment | Glued |
Plate Thickness | 0.4 |
Pattern | High theta |
Description
The majority of plates in the plate package are channel plates, and it is between these plates the heat is transferred. Generally, the channel plates are symmetrical and 4-holed creating the parallel flow of the two fluids. The identical channel plates, with one plate design and one gasket design, are named A side or B side depending on if the chevron pattern is pointing downwards or upwards. Every other plate is hung upside-down creating the open flow channels where the corrugation provides mechanical strength in the supporting points.
