Shop All Toggle Switches
Alcoswitch

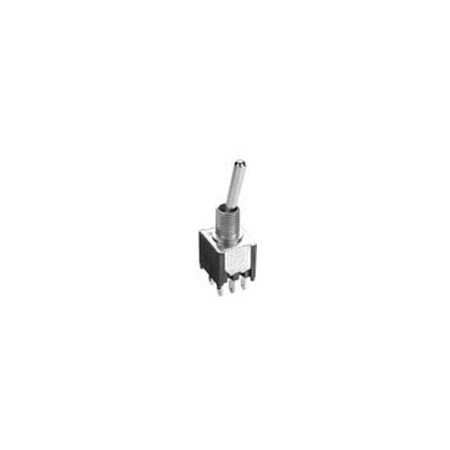

TT23N2T=SW WITH 0.29 TOGGLE
Mfr # TT23N2T
Zoro # G800968552
product price: $16.75
/ea
Sold in multiples of 5 for $83.75
$83.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Switch Type Toggle
- Process Sealed No
- Seal Type Terminal Seal (Epoxy)
- Bushing Thread Size 17807
- Toggle Style Baton Medium
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Alcoswitch
- MFR # TT23N2T
- Zoro # G800968552
- Country of Origin Mexico
- Category Toggle Switches
Dimensions
Bushing Thread Size | 17807 |
Toggle Length | 7.52 mm [ .296 in ] |
Details
Switch Type | Toggle |
Process Sealed | No |
Seal Type | Terminal Seal (Epoxy) |
Toggle Style | Baton Medium |
Toggle Actuation | Vertical |
Contact Current Rating (A) | 3 |
UL/CSA Current Rating (125V) (A) | 3 |
Dielectric Strength (VAC) | 1000 |
Insulation Resistance (MΩ) | 1000 |
Voltage Rating | 125 VAC, 28 VDC |
Product Type | Switch |
Actuator Finish | Thermoplastic |
UL Rating | Qualified |
Configuration (Pole-Throw) | Double Pole - Double Throw |
Operating Function | On None On |
Contact Plating | Silver |
Bushing Style | Threaded |
Mounting Type | Panel |
Contact Base Material | Gold |
Sealed | Yes |
Termination Type | Vertical, Wire Lugs |
UL Flammability Rating | UL 94V-0 |
