Alcoswitch

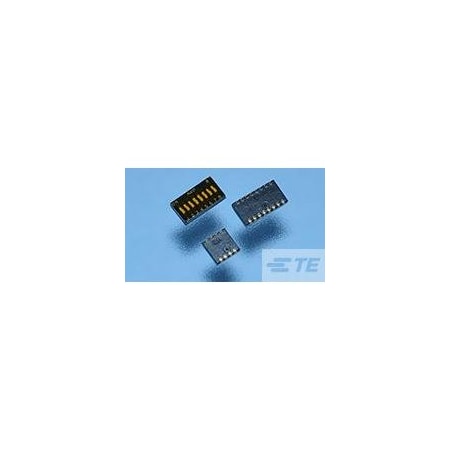

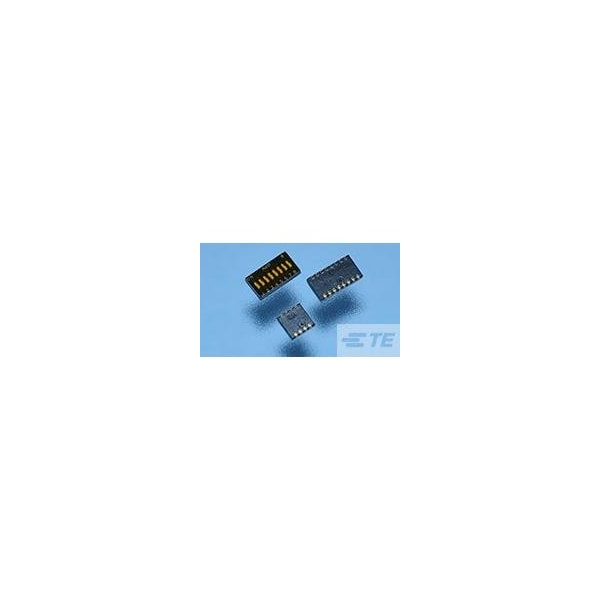

DIP SWITCH GDH06SA04
Mfr # GDH06SA04
Zoro # G400947599
Sold in multiples of 5000 for $11,950.00
$11,950.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Housing Material Polyphenylene Sulfide (PPS)
- Height 2.2 mm [ .093 in ]
- Length 8.75 mm [ .344 in ]
- Switch Type DIP
- Actuator Color White
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Alcoswitch
- MFR # GDH06SA04
- Zoro # G400947599
- Country of Origin China
- Category Specialty Switches
Dimensions
Height | 2.2 mm [ .093 in ] |
Length | 8.75 mm [ .344 in ] |
Details
Housing Material | Polyphenylene Sulfide (PPS) |
Switch Type | DIP |
Actuator Color | White |
Actuator Style | Recessed Rocker |
Solder Tail Contact Plating | Gold over Nickel |
Seal Type | Tape |
UL Flammability Rating | UL 94V-0 |
Number of Switches | 6 |
Centerline | 1.27 mm [ .05 in ] |
Operating Temperature Range (°C) | -30 to 85 |
Auto-Insertable | No |
Contact Base Material | Copper Alloy |
Contact Current Rating (A) | 0.1 |
Low Profile | Yes |
Voltage Rating (VDC) | 50 |
Product Type | Switch |
Contact Mating Area Plating Material | Gold |
Sealed | Yes |
Number of Positions | 6 |
Configuration (Pole-Throw) | Single Pole - Single Throw |
Mounting Type | Surface Mount |
Housing Color | Black |
