Shop All Push Button Switches
Alcoswitch

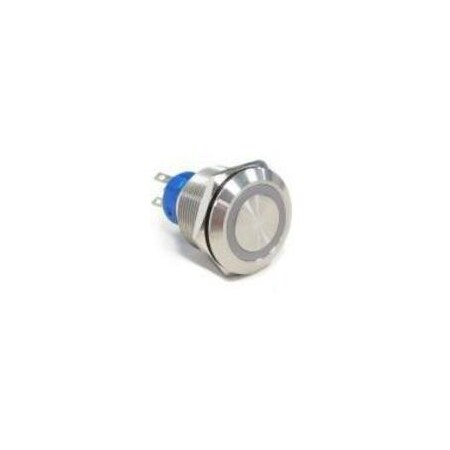

AV22 DPL 5A MOVE RING LED WHITE 24V
Mfr # AV2221E124Q04
Zoro # G700942935
product price: $19.15
/ea
Sold in multiples of 5 for $95.75
$95.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Angle Vertical
- Number of Actuators Single
- Support Bracket Without
- Process Sealed Yes
- Operating Function Push-On/Push-Off
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Alcoswitch
- MFR # AV2221E124Q04
- Zoro # G700942935
- Country of Origin Taiwan, Province of China
- Category Push Button Switches
Dimensions
Bushing Length | 22 in |
Details
Mounting Angle | Vertical |
Number of Actuators | Single |
Support Bracket | Without |
Process Sealed | Yes |
Operating Function | Push-On/Push-Off |
Illuminated | Yes |
Configuration (Pole-Throw) | Double Pole - Double Throw |
Voltage Rating | 250 VAC |
Snap Action | Without |
Detent Style | Audible |
Case Material | PBT |
Switch Type | Pushbutton |
Termination Type | Wire Lugs |
Bushing Style | Threaded |
Dust Proof | Yes |
Switch Contact Plating Material | Silver |
ESD Grounding Terminal | Without |
Mounting Type | Panel |
Product Type | Switch |
Actuator Profile | Flush |
Contact Current Rating | 5 A |
Actuator Style | Round |
Tactile | No |
Description
