Air Products & Controls

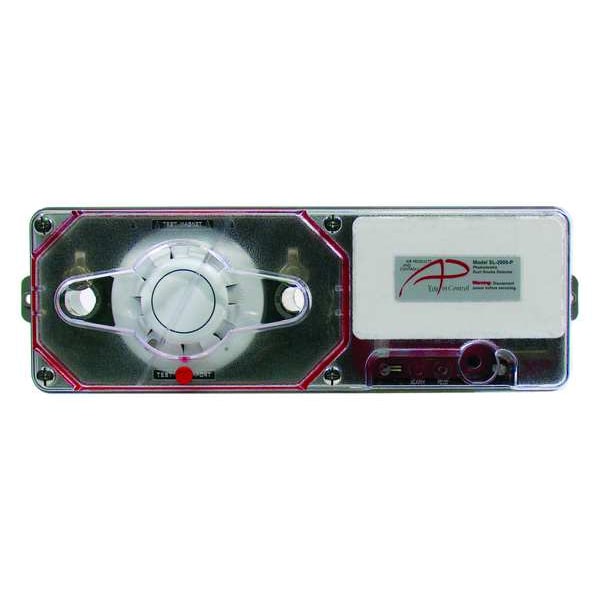

Duct Smoke Detector, Photoelectric, Universal, Air Velocity (FPM) 100 to 4000, 2 1/4 in Depth

product price: $141.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Finish Plastic
  • Mounting Duct
  • Depth (In.) 2 1/4 in
  • Overall Width 2 1/4 in
  • Length (In.) 13 1/2 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Depth (In.) 2 1/4 in
Overall Width 2 1/4 in
Length (In.) 13 1/2 in
Overall Height 4 1/2 in
Height (In.) 4 1/2 in
Width (In.) 2 1/4 in
Depth 2 1/4 in
Length 13 1/2 in

Details

Item Duct Smoke Detector
Finish Plastic
Mounting Duct
Alarm Current 18mA @ 230V AC, 190mA @ 24V AC, 32mA @ 115V AC, 68mA @ 24V DC
Includes 2 Screws, 4.5 in Notched Fast Tube Starter Piece, 7 in Exhaust Tube, End Cap, Installation Instructions, Magnet, Mounting Template, SL-2000 Duct Detector
Standards CSFM, cUL, ETL, ETL-Can, MEA, UL
Voltage 115V AC, 230V AC, 24V AC, 24V DC
For Use With All APC Remote Operation Accessories
Type Photoelectric
Amps AC 10 A
Ambient Temp. Limits (F) 32 Degrees to 140 Degrees F
Humidity Range (% RH) 10 to 85% RH Non-Condensing/Non-Freezing
Air Velocity (FPM) 100 to 4000 fpm
Humidity Range 10 to 85% RH Non-Condensing/Non-Freezing
Mount Type Duct

Description

Duct Smoke Detector, Photoelectric, Finish Plastic, Duct Mounting, Alarm Current 18mA @ 230V AC, 190mA @ 24V AC, 32mA @ 115V AC, 68mA @ 24V DC, Depth (In.) 2 1/4 in, Height (In.) 4 1/2 in, Length (In.) 13 1/2 in, Width (In.) 2 1/4 in, Ambient Temp. Limits (F) 32 Degrees to 140 Degrees F, Air Velocity (FPM) 100 to 4000 fpm, Amps AC 10 A, Humidity Range ( Percent RH) 10 to 85 Percent RH Non-Condensing/Non-Freezing, Voltage 115V AC, 230V AC, 24V AC, 24V DC

Restrictions

  • Hazardous material
