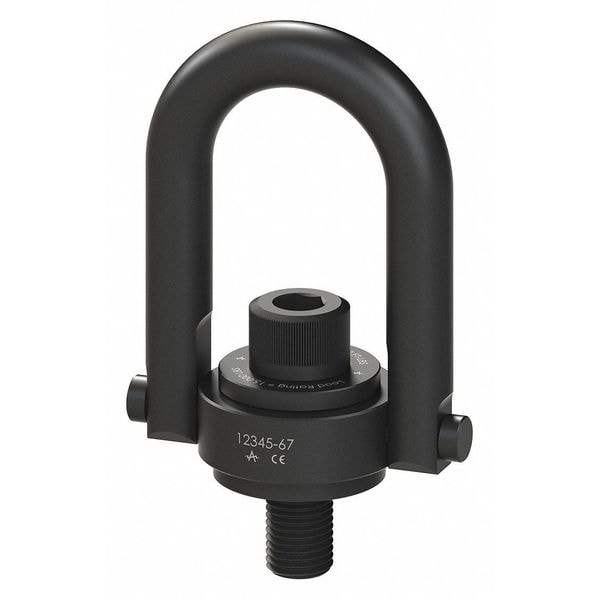

Hst Ring, Bolt-On, 5/8-11in, 60 ft.-lb, SEHR
Mfr # 23002
Zoro # G0322896
original price:
$183.63
32% off
Free Shipping & Returns
$123.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Style Bolt-on
- Series SEHR
- Pivot 180 Degrees
- Swivel Angle 360 Degrees
- Working Load Limit 4,000 lb
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Adb Hoist Rings
- MFR # 23002
- Zoro # G0322896
- Country of Origin United States
- Category Hoist Rings
Dimensions
Bail Dia. | 3/4 in |
Thread Size | 5/8"-11 |
Dimension F | 4 25/32 in |
Dimension d | 3/4 in |
Dimension E | 1 1/32 in |
Dimension a | 7/8 in |
Dimension C | 1 7/32 in |
Dimension B | 3 1/4 in |
Dimension D | 3/4 in |
Dimension A | 7/8 in |
Overall Length | 3 1/2 in |
Bail Inside Length | 2 1/8 in |
Bail Inside Width | 1 1/2 in |
Overall Width | 2 3/8 in |
Usable Thread Length | 1 in |
Description
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 4,000 lb, Thread Size 5/8 In.-11, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 in, Bail Inside Length 2 1/8 in, Bail Inside Width 1 1/2 in, Bail Thickness 3/4 in, Overall Length 3 1/2 in, Overall Width 2 3/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 60 ft-lb, Finish Black Oxide
