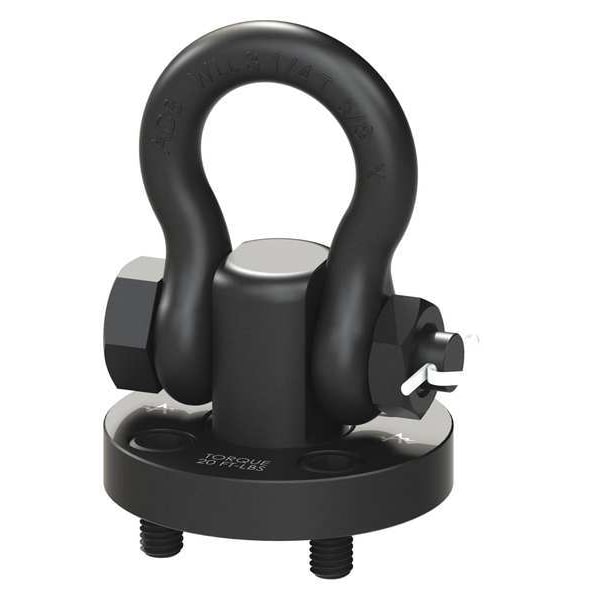

Hoist Ring, Screw-On, 7/16-14in
Mfr # 36540
Zoro # G0322710
Free Shipping & Returns
$166.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Style Screw-On
- Series SHACKLEHR
- Pivot 180 Degrees
- Swivel Angle 360 Degrees
- Working Load Limit 6,500 lb
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Adb Hoist Rings
- MFR # 36540
- Zoro # G0322710
- Country of Origin United States
- Category Hoist Rings
Dimensions
Bail Dia. | 5/8 in |
Thread Size | 7/16"-14 |
Dimension F | 35/64 in |
Dimension E | 2 13/32 in |
Dimension a | 1 11/16 in |
Dimension C | 2 15/16 in |
Dimension d | 11/16 in |
Dimension B | 5 10/21 in |
Dimension D | 11/16 in |
Dimension A | 1 11/16 in |
Bail Inside Width | 1 3/4 in |
Bail Inside Length | 1 7/8 in |
Usable Thread Length | 3/4 in |
Overall Width | 3 1/2 in |
Overall Length | 3 1/2 in |
Description
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Weld-On, Working Load Limit 6,500 lb, Thread Size 7/16 In.-14, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 3/4 in, Bail Inside Length 1 7/8 in, Bail Inside Width 1 3/4 in, Bail Thickness 11/16 in, Overall Length 3 1/2 in, Overall Width 3 1/2 in, Hardware Included Removable Bolt, Minimum Installation Torque 20 ft-lb, Finish Black Oxide
