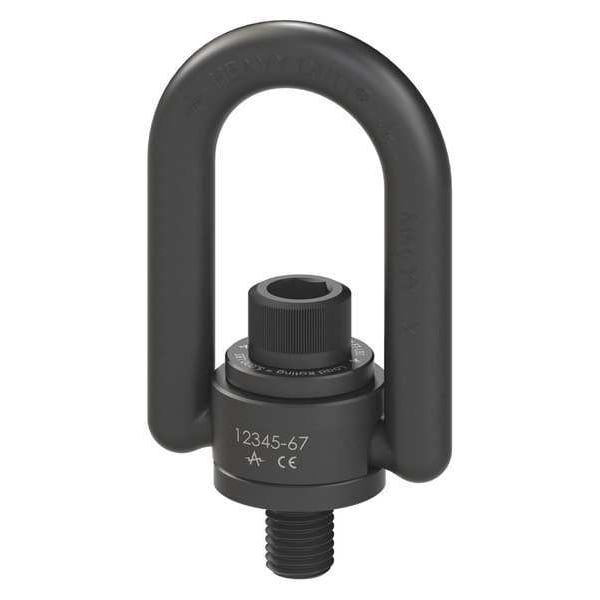

Heavy Duty Hoist Ring, 5000 lb. WLL

product price: $97.85
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Style Screw-On
  • Series Heavy Duty(R)
  • Pivot 180 Degrees
  • Swivel Angle 360 Degrees
  • Working Load Limit 5,000 lb
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Bail Dia. 3/4 in
Thread Size 3/4"-10
Dimension a 1 in
Dimension d 3/4 in
Dimension C 1 1/2 in
Dimension F 5 5/16 in
Dimension B 3 1/2 in
Dimension E 1 1/2 in
Dimension A 1 in
Dimension D 3/4 in
Bail Inside Width 1 7/8 in
Overall Width 3 1/2 in
Overall Length 3 1/2 in
Bail Inside Length 2 1/4 in
Usable Thread Length 1 1/2 in

Description

Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 5,000 lb, Thread Size 3/4 In.-10, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/2 in, Bail Inside Length 2 1/4 in, Bail Inside Width 1 7/8 in, Bail Thickness 3/4 in, Overall Length 3 1/2 in, Overall Width 3 1/2 in, Hardware Included Removable Bolt, Minimum Installation Torque 100 ft-lb, Finish Black Oxide
