  11. Male Disconnect, Red, 22-18AWG, PK1000
Shop All Wire Disconnects
3M

Male Disconnect, Red, 22-18AWG, PK1000

product price: $518.99
/pk 1000, $0.52/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Red
  • Insulation Type Nylon
  • Wire Range 22 to 18 AWG
  • Connection Type Crimp
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MNG18-250DMK
  • Zoro # G5662596
  • UPC #
    00054007023784
  • Country of Origin United States
  • Category Wire Disconnects

Dimensions

Tab Size 0.032 in x 0.250 in
Overall Length 0.92 in
Barrel Inside Dia. 0.065 in
Barrel Inside Diameter 0.065 in
Barrel Size Standard
Wire Size Range 22 AWG - 18 AWG
Barrel Outside Diameter 0.145 in
Maximum Wire Size 18 AWG
Minimum Wire Size 22 AWG
Tab Width 0.25 in
Barrel Length 0.25 in

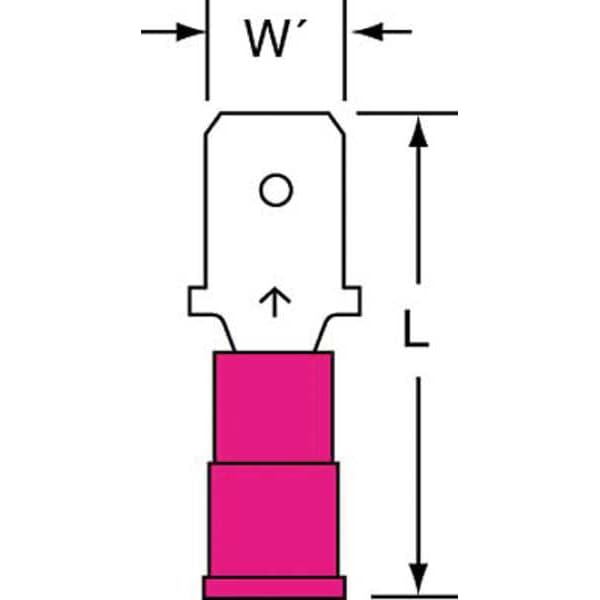

Male Tab Width (W') 0.25 in

Description

Male Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.065 in, Barrel Outside Diameter 0.145 in
