  11. Male Disconnect, Red, 22-18AWG, PK1000
Shop All Wire Disconnects
3M

Male Disconnect, Red, 22-18AWG, PK1000

product price: $520.99
/pk 1000, $0.52/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Red
  • Insulation Type Nylon
  • Connection Type Crimp
  • Wire Range 22 to 18 AWG
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MNG18-187DMK
  • Zoro # G5750534
  • UPC #
    00054007023777
  • Country of Origin United States
  • Category Wire Disconnects

Dimensions

Overall Length 0.84 in
Tab Size 0.020 in x 0.187 in
Barrel Inside Dia. 0.08 in
Barrel Size Standard
Barrel Inside Diameter 0.08 in
Tab Width 0.187 in
Maximum Wire Size 18 AWG
Minimum Wire Size 22 AWG
Barrel Outside Diameter 0.145 in
Wire Size Range 22 AWG - 18 AWG
Barrel Length 0.24 in
Bullet Diameter 0.156 in

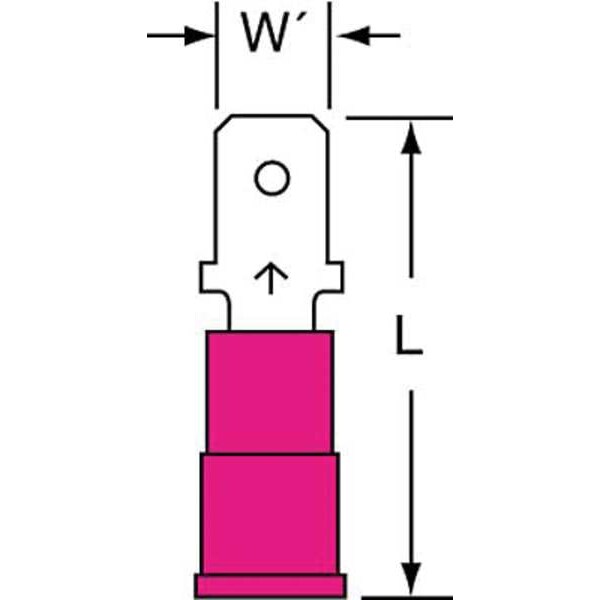

Male Tab Width (W') 0.187 in

Description

Male Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.187 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.08 in, Barrel Outside Diameter 0.145 in
