  11. Female Disconnect, Yellow, 12-10AWG, PK500
Shop All Wire Disconnects
3M

Female Disconnect, Yellow, 12-10AWG, PK500

product price: $220.99
/pk 500, $0.44/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Insulation Color Yellow
  • Wire Range 12 to 10 AWG
  • Insulation Type Vinyl
  • Connection Type Crimp
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MVI10-250DFK
  • Zoro # G7564873
  • UPC #
    00054007695783
  • Country of Origin United States
  • Category Wire Disconnects

Dimensions

Tab Size 0.032 in x 0.250 in

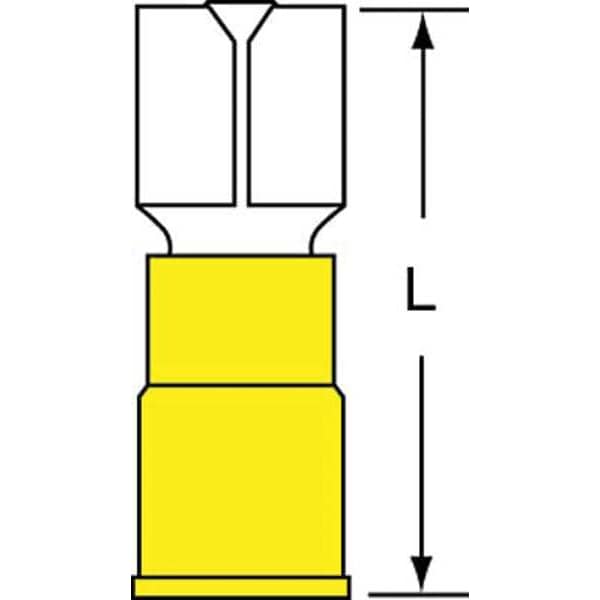

Overall Length 0.95 in
Barrel Inside Dia. 0.128 in
Connection Width 0.25 in
Minimum Conductor Size 12 AWG
Pad Width 0.25 in
Maximum Insulation Outer Diameter 0.25 in
Mates with Male Tab Width (W') 0.25 in
Maximum Conductor Size 10 AWG
Overall Diameter 0.23 in
Mates with Female Width 0.25 in
Barrel Length 0.25 in
Maximum Insulation Outside Diameter 0.145 in
Diameter (D) 0.23 in
Barrel Inside Diameter 0.128 in
Tab Width 0.25 in

Description

Female Disconnect, Insulation Color Yellow, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Vinyl, Overall Length 0.95 in, Package Quantity 500
