  11. Female Disconnect, Yellow, 12-10AWG, PK500
Shop All Wire Disconnects
3M

Female Disconnect, Yellow, 12-10AWG, PK500

product price: $248.99
/pk 500, $0.50/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Yellow
  • Connection Type Crimp
  • Insulation Type Nylon
  • Wire Range 12 to 10 AWG
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MNGI10-250DFIK
  • Zoro # G5699881
  • UPC #
    00054007695639
  • Country of Origin United States
  • Category Wire Disconnects

Dimensions

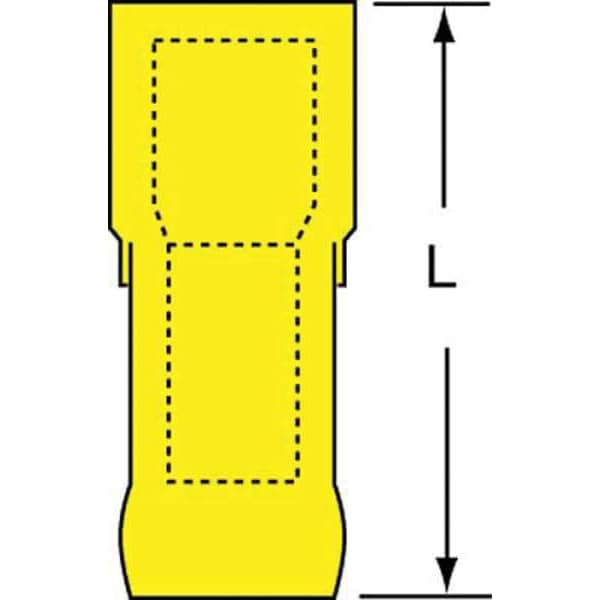

Overall Length 0.94 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.165 in
Maximum Wire Size 10 AWG
Minimum Wire Size 12 AWG
Barrel Size Standard
Barrel Inside Diameter 0.165 in
Tab Width 0.25 in
Wire Size Range 12 AWG - 10 AWG
Barrel Outside Diameter 0.25 in
Barrel Length 0.25 in
Mates with Male Tab Width (W') 0.25 in
Mates with Female Width 0.25 in
Male Tab Width (W') 0.250 in

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.165 in, Barrel Outside Diameter 0.25 in
