  11. Female Disconnect, Red, 22-18AWG, PK1000
Shop All Wire Disconnects
3M

Female Disconnect, Red, 22-18AWG, PK1000

product price: $655.99
/pk 1000, $0.66/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Red
  • Connection Type Crimp
  • Wire Range 22 to 18 AWG
  • Insulation Type Nylon
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MNGI18-250DFIK
  • Zoro # G5829135
  • UPC #
    00054007695677
  • Country of Origin United States
  • Category Wire Disconnects

Dimensions

Tab Size 0.032 in x 0.250 in

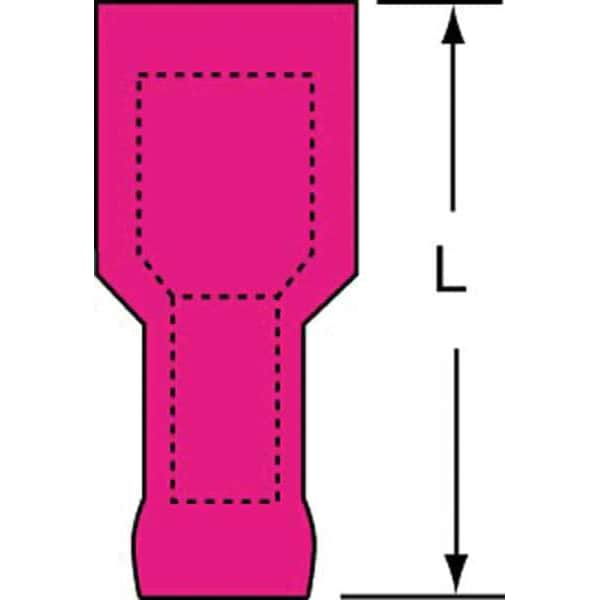

Overall Length 0.83 in
Barrel Inside Dia. 0.08 in
Wire Size Range 22 AWG - 18 AWG
Barrel Size Standard
Barrel Inside Diameter 0.08 in
Minimum Wire Size 22 AWG
Barrel Outside Diameter 0.145 in
Maximum Wire Size 18 AWG
Tab Width 0.25 in
Barrel Length 0.25 in
Male Tab Width (W') 0.250 in
Mates with Female Width 0.25 in
Mates with Male Tab Width (W') 0.25 in

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.08 in, Barrel Outside Diameter 0.145 in
