3M
Female Disconnect, Red, 22-18AWG, PK1000
Mfr # MNG18-250DFK
Zoro # G5765803
Free Shipping & Returns
$539.99
Delivery to commercial address only
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Insulation Partial
- Insulation Color Red
- Wire Range 22 to 18 AWG
- Connection Type Crimp
- Insulation Type Nylon
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand 3M
- MFR # MNG18-250DFK
- Zoro # G5765803
- UPC # 00054007023692
- Country of Origin United States
- Category Wire Disconnects

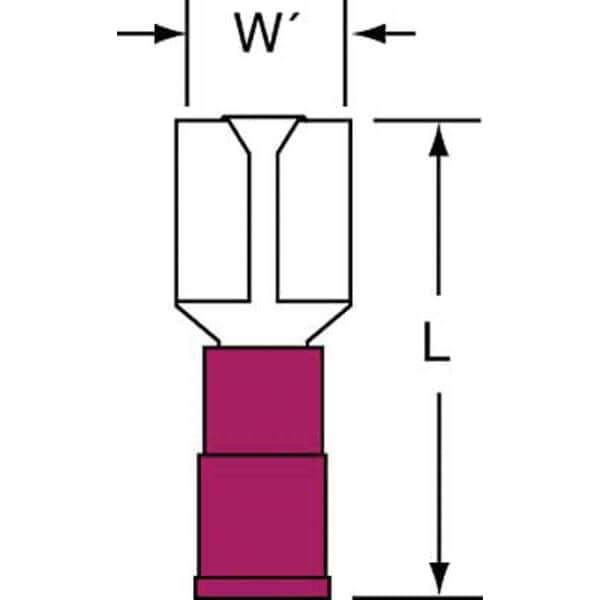

Dimensions
Tab Size | 0.032 in x 0.250 in |
Overall Length | 0.86 in |
Barrel Inside Dia. | 0.08 in |
Mates with Male Tab Width (W') | 0.25 in |
Tab Width | 0.25 in |
Connection Width | 0.25 in |
Mates with Female Width | 0.25 in |
Maximum Conductor Size | 18 AWG |
Minimum Conductor Size | 22 AWG |
Maximum Insulation Outer Diameter | 0.145 in |
Pad Width | 0.25 in |
Barrel Inside Diameter | 0.08 in |
Barrel Length | 0.25 in |
Description
Female Disconnect, Insulation Color Red, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 0.86 in, Package Quantity 1000
