3M

Female Disconnect, Red, 22-18AWG, PK1000

product price: $691.99
/pk 1000, $0.69/ea
Free Shipping & Returns
Delivery to commercial address only
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Insulation Color Red
  • Connection Type Crimp
  • Insulation Type Nylon
  • Wire Range 22 to 18 AWG
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MNG18-250DFIK
  • Zoro # G5557081
  • UPC #
    00054007022930
  • Country of Origin United States
  • Category Wire Disconnects

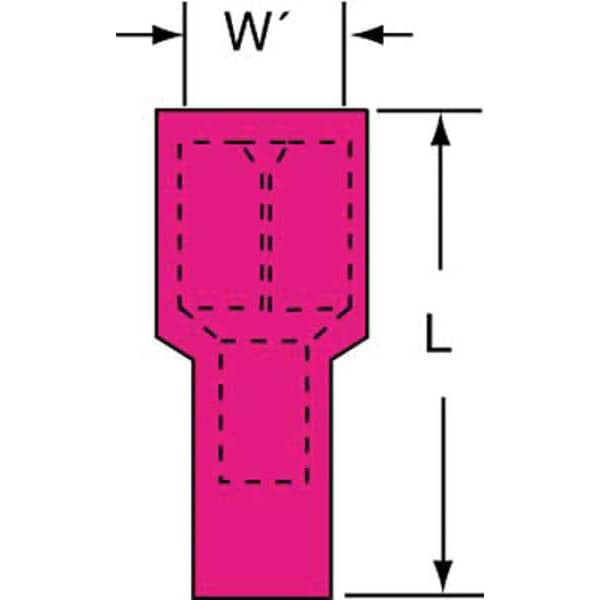

Dimensions

Overall Length 0.87 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.08 in
Width 0.37 Inch
Dimension E 0.37 Inch
Maximum Insulation Outer Diameter 0.145 in
Mates with Male Tab Width (W') 0.25 Inch
Pad Width 0.25 Inch
Diameter 0.23 Inch
Barrel Length 0.25 Inch
Conductor Sizes 22 - 18 AWG
Length 0.87 Inch
Tab Width 0.25 in
Overall Diameter 0.23 in
Overall Width 0.37 in
Minimum Conductor Size 22 AWG
Maximum Conductor Size 18 AWG
Connection Width 0.25 in
Barrel Inside Diameter 0.08 in

Description

Female Disconnect, Insulation Color Red, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 0.87 in, Package Quantity 1000
