  11. Female Disconnect, Blue, 16-14AWG, PK1000
Shop All Wire Disconnects
3M

Female Disconnect, Blue, 16-14AWG, PK1000

product price: $693.99
/pk 1000, $0.69/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Blue
  • Wire Range 16 to 14 AWG
  • Insulation Type Nylon
  • Connection Type Crimp
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand 3M
  • MFR # MNGI14-250DFIK
  • Zoro # G5622154
  • UPC #
    00054007695653
  • Country of Origin United States
  • Category Wire Disconnects

Dimensions

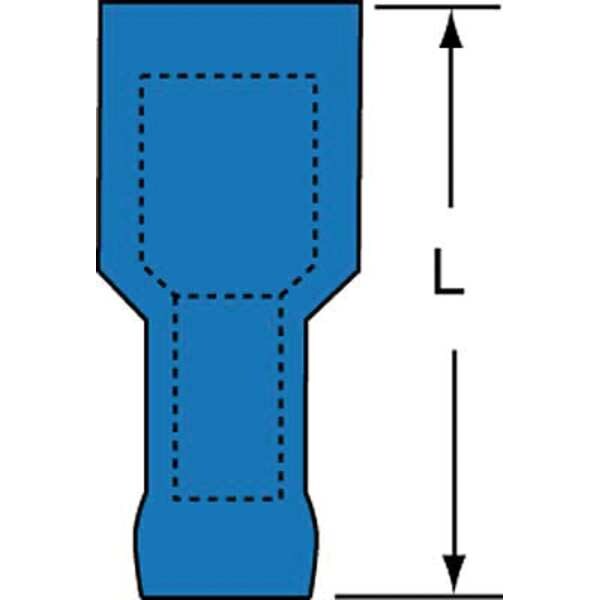

Overall Length 0.83 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.08 in
Maximum Wire Size 14 AWG
Wire Size Range 16 AWG - 14 AWG
Barrel Inside Diameter 0.08 in
Minimum Wire Size 16 AWG
Tab Width 0.25 in
Barrel Outside Diameter 0.145 in
Barrel Size Standard
Male Tab Width (W') 0.250 in
Barrel Length 0.25 in
Mates with Female Width 0.25 in
Mates with Male Tab Width (W') 0.25 in

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.08 in, Barrel Outside Diameter 0.145 in
