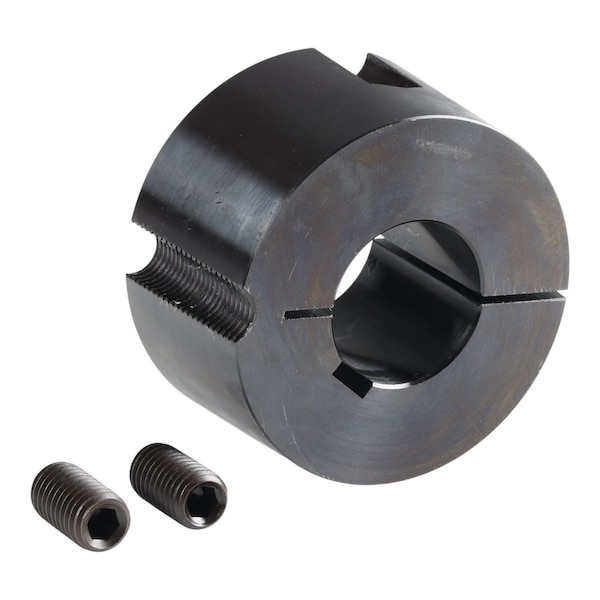

TL Bushing, 2517, 35 mm B Dia, 1.75 in L

product price: $30.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Bushing Series 2517
  • Length 1.75 in
  • Bore Diameter 35 mm
  • Bushing Type Taper Lock
  • Overall Diameter 3.375 in
See all product information

Product Information

Dimensions

Length 1.75 in
Bore Diameter 35 mm
Overall Diameter 3.375 in
Bolt Circle Diameter 3.25 in
Keyway Height 3.5 mm
Keyway Width 10 mm

Details

Bore Bushing Series 2517
Bushing Type Taper Lock
Includes (2) Set Screws
Taper 8 Degrees
Material Steel
Item Taper Lock Bushing
Flange Type Flangeless
System of Measurement Metric
Fastener Tightening Torque Capacity 11,300 in-lb
Maximum Torque 11,300 in-lb
For Shaft Type Keyed

Description

Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 2517, Bore Diameter 35 mm, Length 1.75 in, Bolt Circle Diameter 3.25 in, Bolt Size Not Applicable, System of Measurement Metric, Fastener Tightening Torque Capacity 11,300 in-lb, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3.5 mm, Keyway Width 10 mm, Length Less Flange Not Applicable, Material Steel, Overall Diameter 3.375 in, Taper 8 Degrees
