Shop All Aluminum Pipe Fittings
Zoro Select

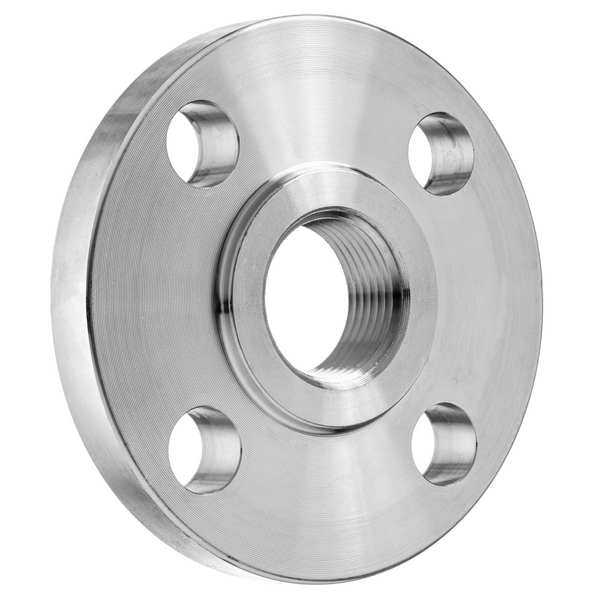

Threaded Pipe Flange, Flat Face, 3/4 in

product price: $25.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material Aluminum
  • Specific Fitting Shape Threaded Flange
  • Application Air, Non-Potable Water, Oil
  • Standards ANSI/ASME B16.1
  • Temp. Range 0 Degrees to 270 Degrees F
See all product information

Product Information

Dimensions

Flange Outside Diameter 3 7/8 in
Bolt Hole Diameter 1/2 in
Overall Length 3 7/8 in
Nominal Pipe Size 3/4 in

Details

Item Threaded Pipe Flange
Pipe Fitting Material Aluminum
Specific Fitting Shape Threaded Flange
Application Air, Non-Potable Water, Oil
Standards ANSI/ASME B16.1
Temp. Range 0 Degrees to 270 Degrees F
Color Silver
Maximum Operating Pressure 125 psi
Low Lead Compliance Level Compliant
Flange Thickness 3/8 in
Class Class 125
For Pipe Schedule 40
Max. Steam Pressure 185 psi
Connection Surface Flat Face
Fitting Connection Type Flanged x FNPT
Number of Bolt Holes 4

Description

Threaded Flange, Flat Face, 3/4 in Nominal Pipe Size, Flanged x FNPT, 3 7/8 in Flange Outside Diameter, 3/8 in Flange Thickness, 3 7/8 in Overall Length, Aluminum, Class Class 125, For Pipe Schedule 40, 125 psi Maximum Operating Pressure, 185 psi Max. Steam Pressure, 0 Degrees to 270 Degrees F, Number of Bolt Holes 4, 1/2 in Bolt Hole Diameter
