  10. /
  11. Sheave, Wire Rope, 5/16 in Max Cable Size, 1,550 lb Max Load, Zinc Plated
Shop All Blocks, Sheaves & Pulleys
Zoro Select

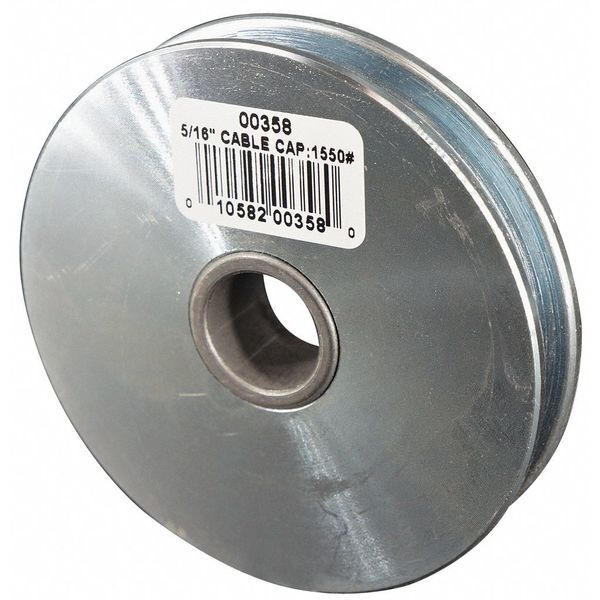

Sheave, Wire Rope, 5/16 in Max Cable Size, 1,550 lb Max Load, Zinc Plated

product price: $28.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Cable Size 5/16 in
  • Designed For Wire Rope
  • Attachment Type Center Bore
  • Rope Dia. 5/16 in
  • Working Load Limit 1,550 lb
See all product information

Product Information

Dimensions

Max. Cable Size 5/16 in
Rope Dia. 5/16 in
Eye Hook Inside Dia. None
Sheave Width 11/16 in
Length 3 1/2 in
Width 3 1/2 in
Sheave Inside Dia. 3/4 in
Sheave Outside Dia. 3 1/2 in
Rope Diameter 5/16 in
Length (Straight Wireway) 3 1/2 in
Inside Diameter 3/4 in
Outside Diameter 3 1/2 in
Overall Depth 11/16 in
Compatible Rope Diameter 5/16 in
Compatible Shaft Diameter 3/4 in

Description

Sheave, Operation Lifting, Pulling, Working Load Limit 1,550 lb, Compatible Rope Diameter 5/16 in, Compatible Shaft Diameter 3/4 in, Bearing Type Sleeve, Inside Diameter 3/4 in, Outside Diameter 3 1/2 in, Number of Grooves 1, Compatible Rope Type Wire Rope, Bearing Seal Type Open, Material Steel, Overall Depth 11/16 in, Finish Zinc Plated
