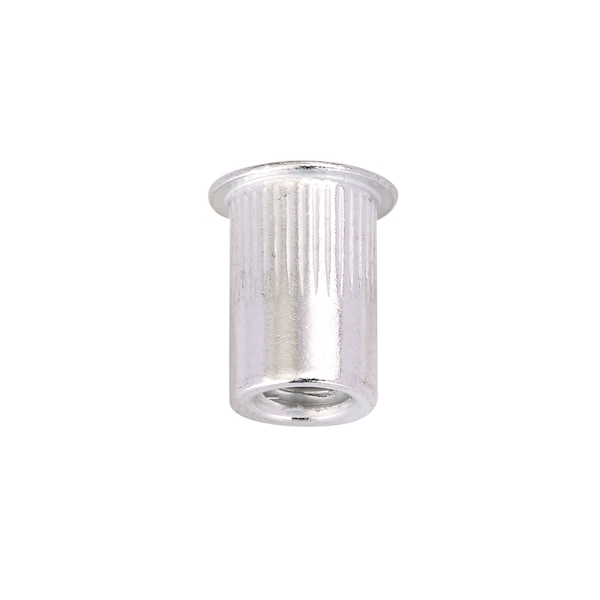

Rivet Nut, 1/4"-20 Thread Size, 0.5 in Flange Dia., 0.58 in L, Aluminum, 50 PK
Mfr # U69315.025.0165
Zoro # G3175121
product price: $10.19
/pk 50, $0.20/ea
$10.19
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Texture Knurled
- Flange Style Flanged
- Thread Size 1/4"-20
- Drill Bit Size 25/64"
- Material Aluminum
Product Information
- Brand Zoro Select
- MFR # U69315.025.0165
- Zoro # G3175121
- Country of Origin Multiple
- Category Rivet Nuts
Dimensions
| Thread Size | 1/4"-20 |
| Drill Bit Size | 25/64" |
| Flange Diameter | 0.5 in |
| Insert Diameter | 0.39 in |
| Overall Length | 0.58 in |
| Hole Size | 0.39 in |
| Head Height | 0.04 in |
| Maximum Hole Diameter | 0.39 in |
Details
| Item | Rivet Nut |
| Body Texture | Knurled |
| Flange Style | Flanged |
| Material | Aluminum |
| Finish | Plain |
| Grip Range | 0.027 in to 0.165 in |
| System of Measurement | Inch |
| End Type | Open |
| Application | Used To Securely Fasten Metals, Fiberglass Or Rigid Plastic Materials By Creating Permanent Threads, Ideal For Materials Considered Too Thin For Tapered Threads |
| Compatible Material | Metal |
| Insert Nut Type | Rivet Nut |
| Maximum Material Thickness | 0.165 in |
| Thread Type | Coarse |
| Flange Thickness | 0.04 in |
| Minimum Material Thickness | 0.027 in |
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 25/64 in, Overall Length 37/64 in, Thread Size 1/4 In.-20, Thread Type Coarse, Flange Diameter 0.5 in, Flange Thickness 0.04 in, Material Aluminum, Finish Plain, Body Texture Knurled, Compatible Material Metal, Drill Bit Size 25/64 in, Maximum Hole Diameter 0.39 in, Minimum Material Thickness 0.027 in, Maximum Material Thickness 0.165 in, Insert Nut Type Rivet Nut, End Type Open, Flange Style Flanged, Package Quantity 50
