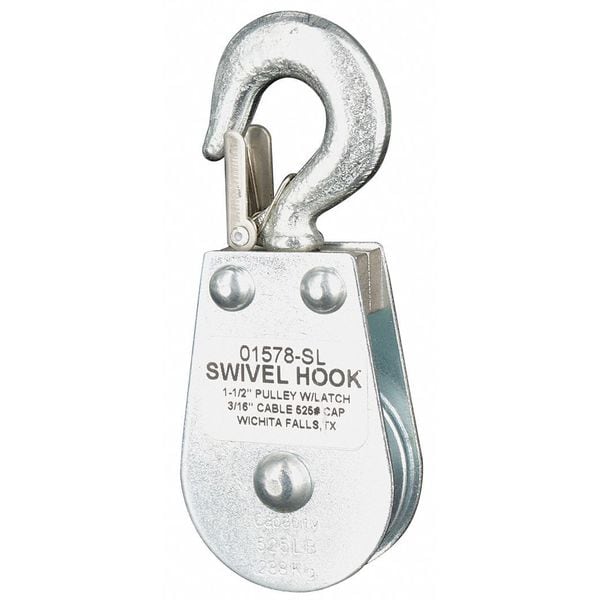

Pulley Block, Wire Rope, 3/16 in Max Cable Size, 525 lb Max Load, Zinc Plated
Mfr # 4JX67
Zoro # G2707503
original price:
$21.95
9% off
new price: $19.79
/ea
$19.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Cable Size 3/16 in
- Designed For Wire Rope
- Attachment Type Swivel Hook
- Working Load Limit 525 lb
- Eye Hook Inside Dia. 11/32 in
Product Information
- Brand Zoro Select
- MFR # 4JX67
- Zoro # G2707503
- Country of Origin Multiple
- Category Blocks, Sheaves & Pulleys
Dimensions
Max. Cable Size | 3/16 in |
Eye Hook Inside Dia. | 11/32 in |
Sheave Width | 7/16 in |
Sheave Inside Dia. | 1 in |
Sheave Outside Dia. | 1 1/2 in |
Sheave Depth | 7/16 in |
Mounting Hole Diameter | 5/16 in |
Overall Depth | 5/8 in |
Attachment Inside Diameter | 11/32 in |
Sheave Inside Diameter | 1 in |
Overall Width | 1 5/8 in |
Sheave Outside Diameter | 1 1/2 in |
Compatible Rope Diameter | 3/16 in |
Overall Height | 4 1/8 in |
Description
Pulley Block, Product Type Pulley Block, Pulley Type Swivel, Mount Type Upright Mount, Working Load Limit 525 lb, Operation Pulling, Attachment Type Swivel Hook, Compatible Rope Diameter 3/16 in, Sheave Inside Diameter 1 in, Sheave Depth 7/16 in, Sheave Outside Diameter 1 1/2 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter 11/32 in, Housing Material Carbon Steel, Mounting Hole Diameter 5/16 in, Number of Grooves 1, Sheave Material Steel
