Shop All Pipe Supports
Zoro Select

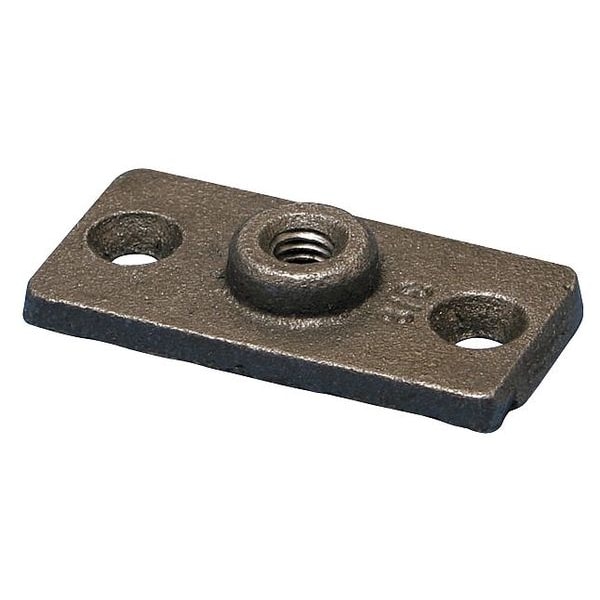

Plate, 3 1/2 In, Malleable Iron
Mfr # 365M0050PL
Zoro # G1827427
product price: $3.99
/ea
$3.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Ceiling or Wall
- Material Cast Iron
- Metal Detectable Yes
- Width (In.) 2 1/5 in
- Max. Load (Lb.) 180 lb
Product Information
- Brand Zoro Select
- MFR # 365M0050PL
- Zoro # G1827427
- UPC # 782856364801
- Country of Origin China
- Category Pipe Supports
Dimensions
Width (In.) | 2 1/5 in |
Thread Size (In.) | 1/2 |
Rod Size | 1/2 in |
Length (In.) | 47/100 in |
Height (In.) | 9/20 in |
Pipe Size (In.) | 3 1/2 in |
Width | 2.20" |
Maximum Pipe Size | 3.5 in |
For Threaded Rod Size | 1/2 in |
Overall Height | 0.45 in |
Overall Length | 1.94 in |
Mounting Hole Size | 0.25 in |
Overall Width | 2.2 in |
Details
Item | Plate |
Type | Ceiling or Wall |
Material | Cast Iron |
Metal Detectable | Yes |
Max. Load (Lb.) | 180 lb |
Description/Special Features | Structural Attachment To Support Hanger Rod From Ceiling Or Wall |
Product Type | Pipe Support Plate |
For Use With | Support Hanger Rod |
Application | Structural Attachment to Support Hanger Rod |
Series | 365M |
Load Capacity | 180 lb |
Description
Plate, Finish Not Applicable, For Threaded Rod Size 1/2 in, Load Capacity 180 lb, Material Cast Iron, Maximum Pipe Size 3.5 in, Overall Height 0.45 in, Overall Length 1.94 in, Overall Width 2.2 in, Product Type Pipe Support Plate, Series 365M, Application Structural Attachment to Support Hanger Rod, For Use With Support Hanger Rod
