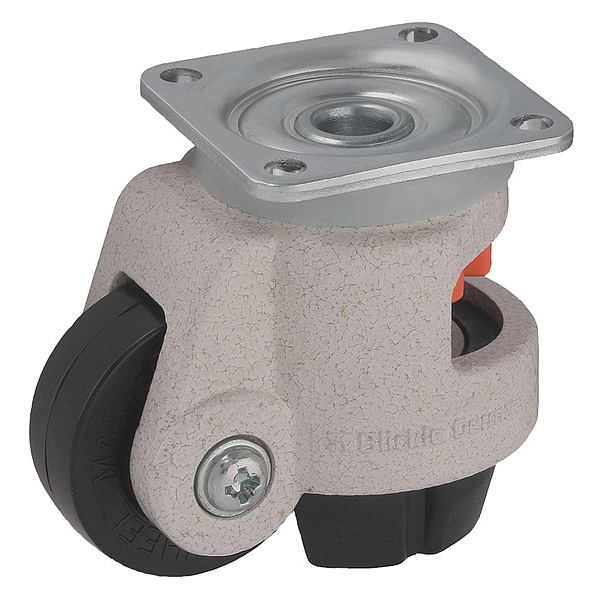

Leveling Caster, 1650 lb. Load, Swivel

product price: $81.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Nylon
  • Load Rating 1650 lb
See all product information

Product Information

Dimensions

Overall Height 122-134 mm
Wheel Dia. 72 mm
Wheel Width 32 mm
Mounting Bolt Dia. M10
Caster Thread Size M8
Plate Size 3-3/4" x 3-3/4"
Mounting Height 4 11/16 in
Maximum Leveling Height 134 mm
Mounting Plate Size 3-3/4 in x 3-3/4 in
Caster Plate Size 95 mm x 95 mm
Swivel Radius 88 mm
Retracted Height 122 mm

Description

Caster Mounting Type Plate, Load Rating Range 1000 to 2999 lb, Load Rating 1650 lb, Wheel Dia. 2 7/8 in, Wheel Width 1 1/4 in, Inside Bolt Hole Spacing 2-3/4 in x 2-3/4 in, Wheel/Tread Material Nylon, Caster Brake Type Leveling Pad, Core Color Black, Wheel Core Material Nylon, Frame Finish Powder Coated, General Purpose Leveling Plate Caster, Mounting Bolt Dia. 7/16 in, Outside Bolt Hole Spacing 2-3/4 in x 2-3/4 in, Swivel Raceway Type Single Ball, Standards DIN EN 12530
