Shop All Arc Welder Accessories
Zoro Select

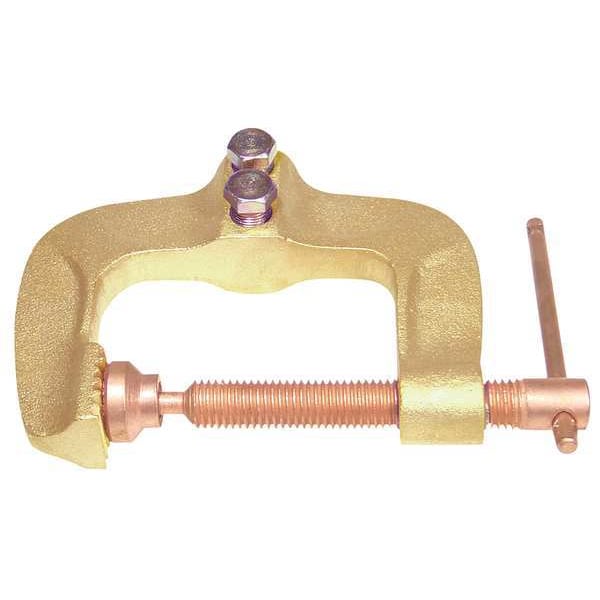

Ground Clamp 800A, Jaw Open 3 1/4ln
Mfr # 19N772
Zoro # G4566107
original price:
$69.42
new price: $69.29
/ea
$69.29
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Brass
- Characteristics Brass And Steel
- Amps 800 A
- Overall Width 1.3 in
- Overall Height 2.8 in
Product Information
- Brand Zoro Select
- MFR # 19N772
- Zoro # G4566107
- UPC # 190735397398
- Country of Origin India
- Category Arc Welder Accessories
Dimensions
Overall Width | 1.3 in |
Overall Height | 2.8 in |
Overall Length | 8.3 in |
Thread Diameter | 9/16 in |
Throat Depth | 2 7/8 in |
Clamp Height | 2 13/16 in |
Details
Item | Ground Clamp |
Material | Brass |
Characteristics | Brass And Steel |
Amps | 800 A |
Features | High-Tensile Spring to Grip Tight |
Includes | Bush |
Non-Conductive | Yes |
Compatible Cable Gauge (Minimum) | 1/0 AWG |
Compatible Cable Gauge (Maximum) | 3/0 AWG |
Screw Material | Zinc-Plated Steel |
Compatible with Surface Type | Flat, Flat Plates, Pipe, Round |
Maximum Jaw Opening | 3 1/4 in |
Maximum Current | 800 A |
Cable Connection Type | Ball Point Screw |
Clamp Connection Material | Brass & Steel |
Clamp Type | Ground Clamp |
Clamp Body Material | Brass |
Description
Ground Clamp, Maximum Current 800 A, Compatible Cable Gauge (Maximum) 3/0 AWG, Compatible Cable Gauge (Minimum) 1/0 AWG, Maximum Jaw Opening 3 1/4 in, Throat Depth 2 7/8 in, Clamp Body Material Brass, Cable Connection Type Ball Point Screw, Clamp Connection Material Brass & Steel, Clamp Height 2 13/16 in, Clamp Type Ground Clamp, Compatible with Surface Type Flat, Flat Plates, Pipe, Round, Features High-Tensile Spring to Grip Tight, Non-Conductive Yes, Overall Height 2.8 in
Restrictions
- WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
