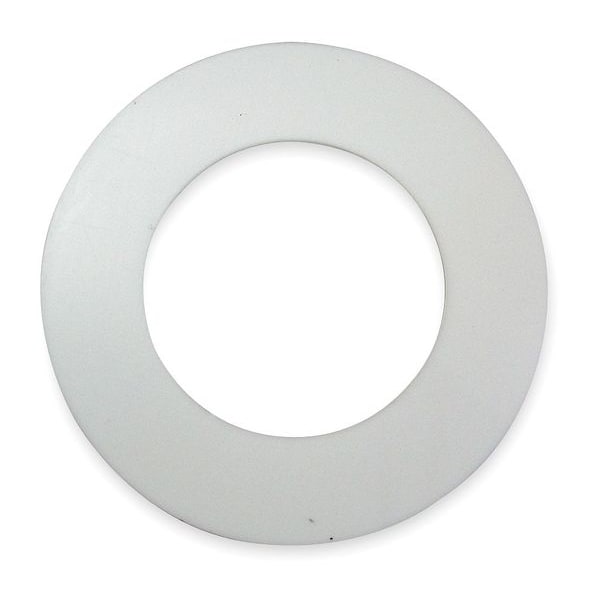

Gasket, Ring, 1 1/4 In, Virgin PTFE, White, Outside Dia.: 3"
Mfr # D012150R204027
Zoro # G0722504
product price: $3.25
/ea
$3.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Size 1 1/4 in
- Outside Dia. 3 in
- Inside Dia. 1 21/32 in
- Metal Detectable No
- Max. Pressure (PSI) 800 psi
Product Information
- Brand Zoro Select
- MFR # D012150R204027
- Zoro # G0722504
- Country of Origin India
- Category Flange & Ring Gaskets
Dimensions
Pipe Size | 1 1/4 in |
Outside Dia. | 3 in |
Inside Dia. | 1 21/32 in |
Details
Item | Ring Flange Gasket |
Metal Detectable | No |
Max. Pressure (PSI) | 800 psi |
Material of Construction | Virgin PTFE |
Thickness | 1/8 in |
Flange Class | Class 150 |
Color | White |
Product Type | Flange Gasket |
Temp. Range (F) | -450 to 500 |
Continuous Max. Temp. (F) | 500 Degrees F |
Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
Type | Ring Gasket |
Insert Material | None |
Reinforced | No |
Metal Detectable Gasket | No |
For Fluid Type | Acids, Caustics, Chlorine, Cryogenics, Hydrocarbons |
For Flange ANSI Class | 150 |
FDA Approved | No |
Binder Material | None |
Description
Ring Flange Gasket, Gasket Material PTFE, Insert Material None, For Pipe Size 1 1/4 in, For Flange ANSI Class 150, Binder Material None, Color White, Inside Diameter 1 21/32 in, Minimum Operating Temperature -450 Degrees F, Maximum Operating Temperature 500 Degrees F, Outside Diameter 3 in, Thickness 1/8 in, Product Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
