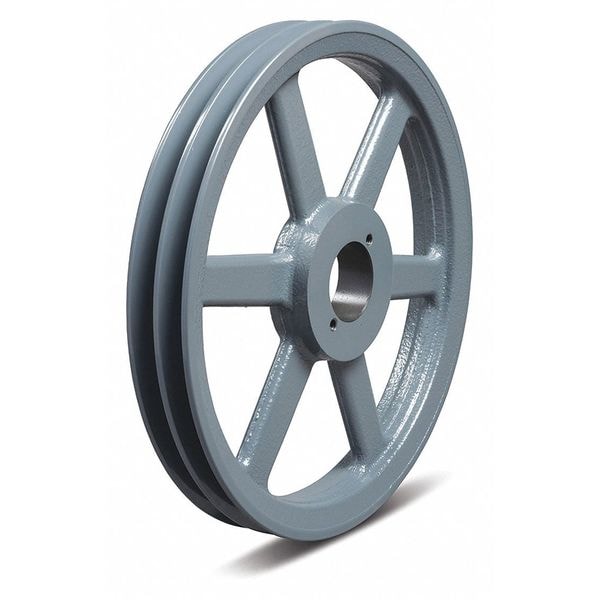

FHP Sheave, 2AK94-QT
Mfr # 2AK94
Zoro # G1535760
product price: $62.19
/ea
$62.19
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Grooves 2
- Standards ISO
- Material Cast Iron
- Bore Type Bushed
- Pitch Diameter 8.66 in (3L), 9 in (4L, A)
Product Information
- Brand Zoro Select
- MFR # 2AK94
- Zoro # G1535760
- UPC # 698672200769
- Country of Origin Multiple
- Category V-Belt Pulleys
Dimensions
| Pitch Diameter | 8.66 in (3L), 9 in (4L, A) |
| Face Width | 1.38 in |
| 3L Pitch Diameter | 8.66 in |
| For Belt Trade Size | 3L, 4L, A, AX |
| Outside Diameter | 9.25 in |
| For Bushing Size | H, QT |
| Length through Bore | 1 1/4 in |
| Maximum Bore Diameter | 1 1/2 in |
| Minimum Bore Diameter | 1/2 in |
| AX Pitch Diameter | 9 in |
| A Pitch Diameter | 9 in |
| 4L Pitch Diameter | 9 in |
| Overall Width | 1 3/8 in |
Details
| Number of Grooves | 2 |
| Item | V-Belt Pulley |
| Standards | ISO |
| Material | Cast Iron |
| Bore Type | Bushed |
| Material Fabrication | Cast |
| Weight | 6.2 lb |
| For Bushing Type | Quick Detachable, Split Taper |
| For V-Belt Type | Classical, Cogged |
| Pulley Construction | Arm |
| Pulley Industry Number | 2AK94 |
Description
V-Belt Pulley, 3L Pitch Diameter 8.66 in, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 9 in, 5L Pitch Diameter Not Applicable, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 9 in, B Pitch Diameter Not Applicable, AX Pitch Diameter 9 in, BX Pitch Diameter Not Applicable, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, For Bushing Type Quick Detachable, Split Taper, For Belt Trade Size 3L, 4L, A, AX
