Shop All Eye Bolts
Zoro Select

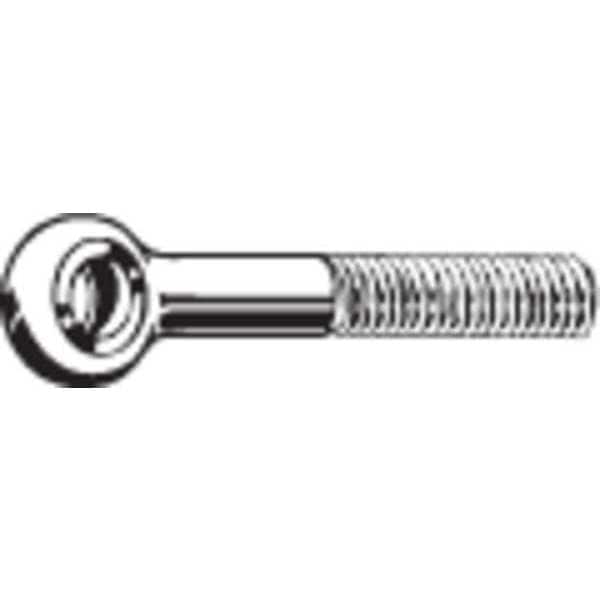

Eye Bolt Without Shoulder, M8-1.25, 22 mm Shank, 8 mm ID, Steel, Plain, 25 PK
Mfr # M16180.080.0090
Zoro # G9900716
product price: $44.35
/pk 25, $1.77/ea
$44.35
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
Class 4.6 Material Grade/Class
- Shoulder Style Without Shoulder
- System of Measurement Metric
- Thread Size M8-1.25
- Shank Length 22 mm
- Eye Inside Diameter 8 mm
Product Information
- Brand Zoro Select
- MFR # M16180.080.0090
- Zoro # G9900716
- UPC # 190735980439
- Country of Origin Multiple
- Category Eye Bolts
Dimensions
| Thread Size | M8-1.25 |
| Shank Length | 22 mm |
| Eye Inside Diameter | 8 mm |
| Overall Length | 90 mm |
| Thread Length | 22 mm |
| Screw Size | M8-1.25 |
| Hole Center-to-End Length | 90 mm |
| Eye Outside Diameter | 18 mm |
| Shank Diameter | 8 mm |
| Eye Outside Dia. | 18 mm |
| Dia./Thread Size | M8-1.25 |
| Shank Dia. | M8 |
| Eye Inside Dia. | 8 mm |
Description
Rod End, Eye Inside Diameter 8 mm, Eye Outside Diameter 18 mm, Eye Thickness 9 mm, Black Oxide, Steel, Material Grade/Class Class 4.6, Material Quality Standards DIN 444, Hole Center-to-End Length 90 mm, Shank Diameter 8 mm, Thread Style Partially Threaded, Thread Direction Right Hand, Thread Length 22 mm, Thread Pitch 1.25 mm, Thread Size M8-1.25, Shank Length 22 mm, Externally Threaded, Shoulder Style Without Shoulder, System of Measurement Metric, Rod End, Overall Length 90 mm
