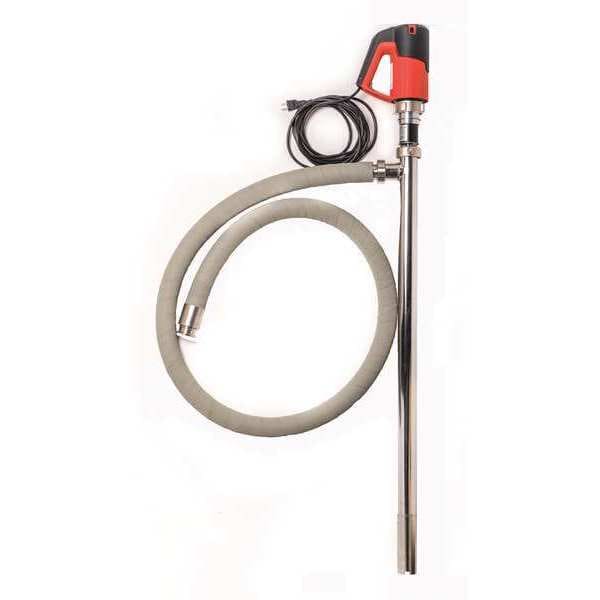

Electric Operated Drum Pump, 60 Hz, 9 gpm

Mfr # ELEC-GLYKIT
Zoro # G5080315

$5,251.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

For Use With ELEC-GLYKIT
Housing Material Stainless steel
Includes Barb Fitting, Intake Tube, Motor
Inlet Size 1-31/32"
Motor Type Electric AC

See all product information

Product Information

Brand Zoro Select
MFR # ELEC-GLYKIT
Zoro # G5080315
UPC #
791885905572
Country of Origin Germany
Category Electric Drum Pumps

Dimensions

Inlet Size	1-31/32"
Discharge Tube Length	8 ft.
Discharge Tube Outlet OD Size	1-1/2"
Width	4-11/16"
Manufacturers Warranty Length	1 yr.
Suction Tube Length	39 in
Suction Tube Outlet O.D. Size	2"
Hose Inside Dia.	1 1/2 in
Discharge Tube Outlet ID Size	1-1/4"
Suction Tube Outlet I.D. Size	1-59/64"
Height	45"
Length	39"
Adapter Dia.	1-1/2"
Hose Length	96 in
Outlet Size	1-1/2"
Discharge Size FPT (In.)	1-1/2
Height Above Container	14 in
For Container Size	55 gal
Overall Length	48 1/2 in
Cord Length	72 in
Bung Connection Dia.	2 in
Hose Outside Dia.	1 5/8 in

Details

For Use With	ELEC-GLYKIT
Housing Material	Stainless steel
Includes	Barb Fitting, Intake Tube, Motor
Motor Type	Electric AC
Voltage	120VAC
Max. Flow GPM	9 gpm
Max. Head	75 ft.
Motor RPM	10,500 RPM
Max. Liquid Temp.	250 Degrees F
Discharge Tubing Material	White Chlorobutyl
Clamp Style	Tri-Clamp
Max. Pressure	150 psi
Suction Tube Type	Constant
Max. GPM for Oil	9
Max. GPM for Water	4
Phase	1
Full Load Amps	5.2 A
DEF Compatible	No
Adapter Type	Bung
Adapter Material	Aluminum
Features	High Viscosity Food Grade
Suction Tube Material	Stainless Steel
GPM	9
Duty	Intermittent
HP	1
Piston Material	PTFE
Self-Priming	Yes
Metered	No
Thermal Protection	Yes
Wetted Materials	316 Stainless Steel, Carbon, Ceramic Oxide, PTFE
Agency Compliance	FDA Compliant
Max. Viscosity	15,000 cps
Hz	60
Item	Electric Operated Drum Pump
Motor Enclosure	ODP
Hose Material	White Chlorobutyl
Pump Connection OD	1 1/2 in
Frequency (Hz)	60 Hz
Not Recommended Chemicals	Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%)
Compatible Chemicals	Calcium Chloride, Glycerin, Hexane, Sodium Bicarbonate (10%)
Housing Material - Pumps	Stainless Steel
Discharge Tube Outlet ID	1 1/4 in
Max. Head - Pumps	75 ft
Hose Tube Material	PVC
Variable Speed	No
Number of Phases	1
Discharge Tube Outlet OD	1 1/2 in
Duty Cycle	Intermittent
Motor HP	1 hp
Includes Bung Adapter	Yes
Includes Nozzle	No
Pump Connection Type	Hose Barb
Hose Cover Material	PVC
For Container Type	Drum
Diesel Exhaust Fluid Compatible	No
Discharge Connection Type	Hose Barb
Pump Connection ID	1 1/2 in
Max. Oil Flow	9 gpm
Max. Fluid Temp.	250 Degrees F
Includes Suction Tube	Yes
Power Source	Electric
Suction Tube ID	2 in
Min. Fluid Temp.	33 Degrees F
Food Grade	Yes
For Media Type	Calcium Chloride, Glycerin, Hexane, Sodium Bicarbonate
Includes Discharge Hose	Yes
Max. Head Pressure	20 psi
Noise Level	85 db
Runs Dry	No
Seal Material	PTFE
Max. Flow Rate	9 gpm
Suction Tube OD	1 7/8 in
Gear Lube	NT
Grease	NT
Explosion Proof	No
Adapter Connection Type	MNPT
Rated Voltage	120V AC
Max. Outlet Pressure	150 psi

Description

Electric Operated Drum Pump, Hose Inside Dia. 1 1/2 in, Max. Head Pressure 20 psi, Max. Oil Flow 9 gpm, Max. Outlet Pressure 150 psi, For Use With ELEC-GLYKIT, Rated Voltage 120V AC, Pump Connection ID 1 1/2 in, Suction Tube OD 1 7/8 in, Hose Length 96 in, Suction Tube Length 39 in, Cord Length 72 in, Includes Bung Adapter Yes, Runs Dry No, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes
