Shop All Dielectric Unions
Zoro Select

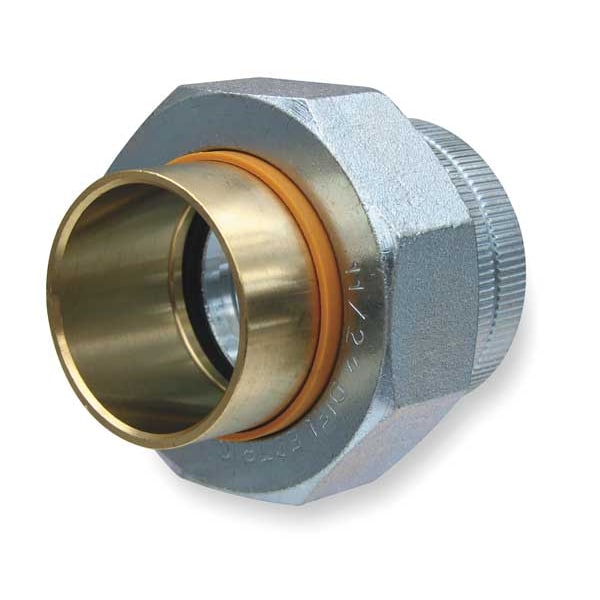

Dielectric Union, 1 1/2 In, FIP x Solder
Mfr # 168-007NL
Zoro # G3377184
original price:
$29.18
20% off
new price: $23.29
/ea
$23.29
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Fitting Material Brass, Steel
- Fitting Connection Type FIP x Solder
- Pipe Size - Pipe Fitting 1-1/2"
- Max. Pressure 250 psi
- Max. Temp. 180 Degrees F
Product Information
- Brand Zoro Select
- MFR # 168-007NL
- Zoro # G3377184
- Country of Origin China
- Category Dielectric Unions
Dimensions
Pipe Size - Pipe Fitting | 1-1/2" |
Pipe Size (Fittings) | 1-1/2" |
Hex Size | 2 3/4 in |
Fitting Side A Outside Diameter | 2 1/8 in |
Fitting Side A Nominal Pipe Size | 1 1/2 in |
Fitting Side B Nominal Pipe Size | 1 1/2 in |
Fitting Side B Outside Diameter | 1 3/4 in |
Overall Length | 2 3/4 in |
Description
Dielectric Union, Steel, Zinc-Plated Galvanized, Brass, C27450, Grade A, Grade B, 1 1/2 in, 2 1/8 in, Female, NPT, 11 1/2, 1 1/2 in, 1 3/4 in, Female, Solder, Insulator Material Nylon, Gasket Material EPDM, Nut Material Iron, Class Class 125, 250 psi Maximum Operating Pressure, 32 Degrees to 180 Degrees F, 2 3/4 in Overall Length, For Pipe Schedule Schedule 40
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
- This item has been restricted from sale in the following states: LA, MD, VT
- *** This is a restricted item. It cannot be used in the USA for potable water applications.
