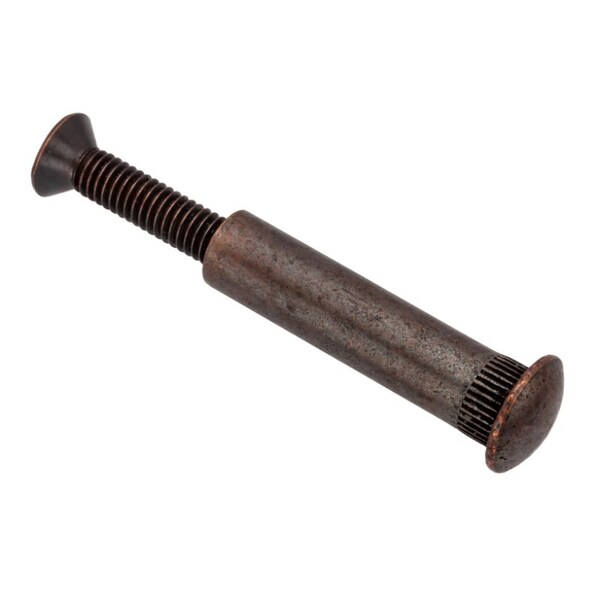

Arch Barrel, 5/16"-18, 2 1/16 in Brl Lg, 1/2 in Brl Dia, Brass Bronze

product price: $7.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • System of Measurement Inch
  • Type Knurled Barrel
  • Thread Size 5/16"-18
  • Material Brass
  • Finish Zinc Plated
See all product information

Product Information

Dimensions

Thread Size 5/16"-18
Barrel Length 2 1/16 in
Barrel Diameter 1/2 in
Barrel Head Dia. 3/4 in
Screw Head Height 0.191 in
Barrel Head Height 3/16 in
Screw Head Dia. 37/64 in
Barrel Dia. 1/2 in
Barrel Thread Depth 1 1/4 in
Dia./Thread Size 5/16"-18
Screw Thread Length 1 1/2 in
Outside Dia. 1/2"
Barrel Head Diameter 3/4 in
Grip Size 2 1/4 in
Screw Minimum Thread Length 1 1/2 in
Screw Size 5/16"-18
Dimensional Standards AMPG 2000 SB.01
Screw Head Diameter 37/64 in

Description

Architectural Bolt, Material Brass, Barrel Head Style Truss, Screw Head Style Flat, Thread Size 5/16 In.-18, Barrel Length 2 1/16 in, Barrel Diameter 1/2 in, Barrel Thread Depth 1 1/4 in, Barrel Drive Type No Drive, Screw Drive Style Phillips, Finish Zinc Plated, Barrel Head Diameter 0.75 in, Barrel Head Height 3/16 in, Dimensional Standards AMPG 2000 SB.01, Grip Size 2 1/4 in, Includes 82 Degree Screw, Made in North America Yes, Pack Size Small
