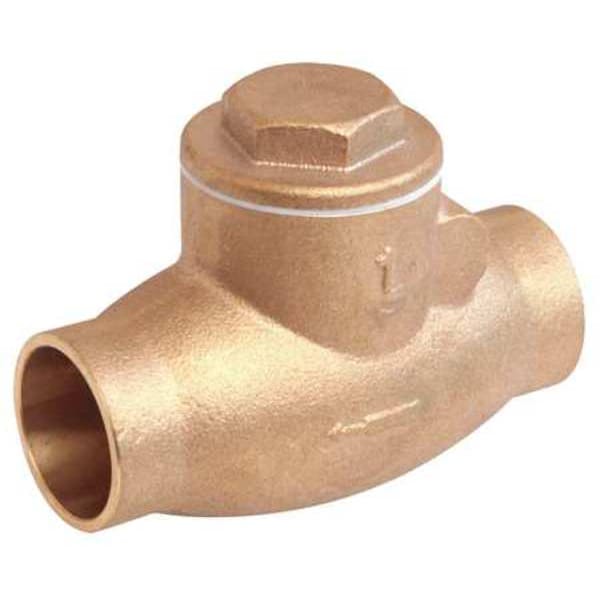

3" Solder Bronze Swing Check Valve
Mfr # 10F321
Zoro # G4265213
Free Shipping & Returns
$265.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Size 3"
- Connection Type Sweat x Sweat
- Connection Solder
- Body Material Bronze
- Seat Material Bronze
Product Information
- Brand Zoro Select
- MFR # 10F321
- Zoro # G4265213
- UPC # 190735377116
- Country of Origin China
- Category Check Valves
Dimensions
Pipe Size | 3" |
Pipe or Tube Size - Check Valves | 3" |
Length | 7-7/8" |
Size | 3" |
Pipe or Tube Size | 3 in |
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves Bronze, Pipe or Tube Size 3 in, Connection Type Sweat x Sweat, Cracking Pressure 0.750 to 1.000 psi, Mounting Orientation Horizontal, Vertical, Seal Material Bronze, Max. Temp. - Valves 406 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 200 psi, Max. Steam Pressure - Valves 125 psi WSP, Seat Material Bronze, Flow - Valves 170 gpm, Full Flow - Valves Yes
