Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

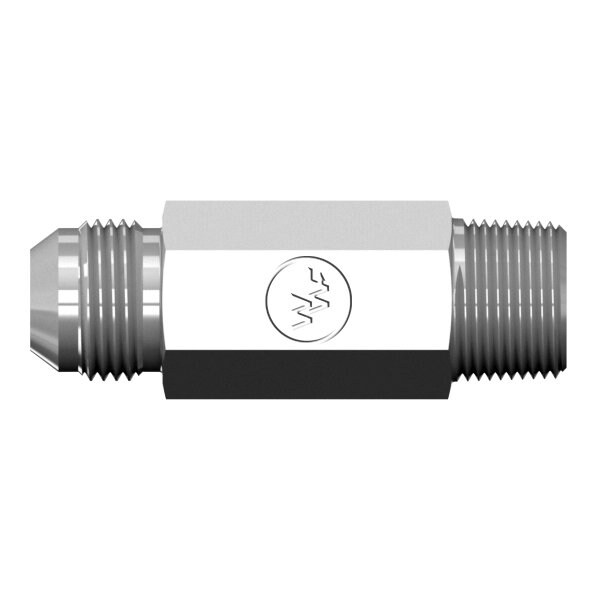

Male Pipe to Male JIC Straight Long Connector
Mfr # 2404LX08X08
Zoro # G203654298
product price: $4.89
/ea
Sold in multiples of 2 for $9.78
$9.78
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Standards Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications).
- Fitting Thread Size 2 1/2-14
- Fitting Thread Type 1 NPT
- Hex Size 0.875
- Material Steel
Product Information
- Brand World Wide Fittings
- MFR # 2404LX08X08
- Zoro # G203654298
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
| Fitting Thread Size 2 | 1/2-14 |
| Hex Size | 0.875 |
| Fitting Thread Size 1 | 3/4-16 |
| Overall Length | 3.04 |
| Overall Length (mm) | 77.216 |
| Hex Size (mm) | 22.225 |
Details
| Standards | Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications). |
| Fitting Thread Type 1 | NPT |
| Material | Steel |
| Fitting Thread Type 2 | JIC 37 Degrees Flare |
| Weight | 0.358 |
| End 1 Connection Type | Male |
| Adapter Type | Elbow and Straights |
| End 2 Connection Type | Male |
| Body Material | Steel |
