Male Pipe To Female Pipe Swivel Straight Stainless
Mfr # 1404X04X04SS
Zoro # G600452466
product price: $9.89
/ea
$9.89
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Length 1.23
- Material Stainless Steel
- Fitting Thread Size 2 1/4-18
- Fitting Thread Type 1 NPT
- Hex Size 0.688
Product Information
- Brand World Wide Fittings
- MFR # 1404X04X04SS
- Zoro # G600452466
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs

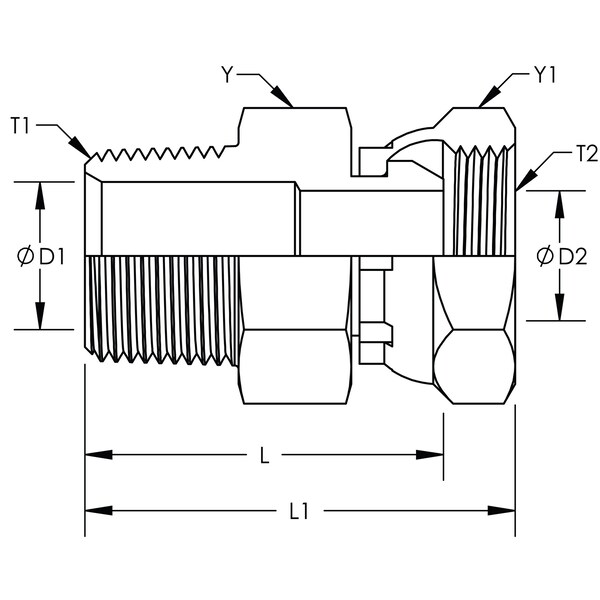

Dimensions
| Length | 1.23 |
| Fitting Thread Size 2 | 1/4-18 |
| Hex Size | 0.688 |
| Overall Length | 1.23 |
| Fitting Thread Size 1 | 1/4-18 |
| Hex Size (mm) | 17.4752 |
| Overall Length (mm) | 31.242 |
Details
| Material | Stainless Steel |
| Fitting Thread Type 1 | NPT |
| Fitting Thread Type 2 | NPT Swivel |
| Standards | Stainless fittings meet SAE J514, SAE J1453, and SAE J1926 specifications. |
| End 2 Connection Type | Female |
| End 1 Hex | 0.688 |
| End 1 Hex (Metric) | 17.4752 |
| End 1 Connection Type | Male |
| Adapter Type | Elbow and Straights |
| Body Material | Stainless Steel |
