Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

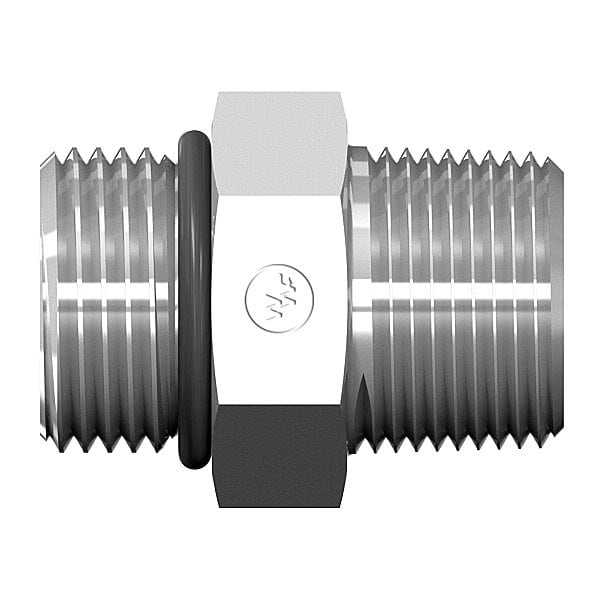

Male O-Ring Boss to Male Pipe Straight Adapter
Mfr # 3249X08X08
Zoro # G303654464
product price: $2.19
/ea
Sold in multiples of 4 for $8.76
$8.76
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material Steel
- Standards Steel pipe fitting fittings meet SAE J514 specifications.
- Fitting Thread Type 1 SAE
- Overall Length 1.528
- Fitting Thread Size 2 1/2-14
Product Information
- Brand World Wide Fittings
- MFR # 3249X08X08
- Zoro # G303654464
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
| Overall Length | 1.528 |
| Fitting Thread Size 2 | 1/2-14 |
| Hex Size | 0.875 |
| Fitting Thread Size 1 | 3/4-16 |
| Overall Length (mm) | 38.8112 |
| Hex Size (mm) | 22.225 |
Details
| Material | Steel |
| Standards | Steel pipe fitting fittings meet SAE J514 specifications. |
| Fitting Thread Type 1 | SAE |
| Fitting Thread Type 2 | NPT |
| Weight | 0.1414 |
| End 2 Connection Type | Male |
| Body Material | Steel |
| End 1 Connection Type | Male |
| Adapter Type | Elbow and Straights |
