Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

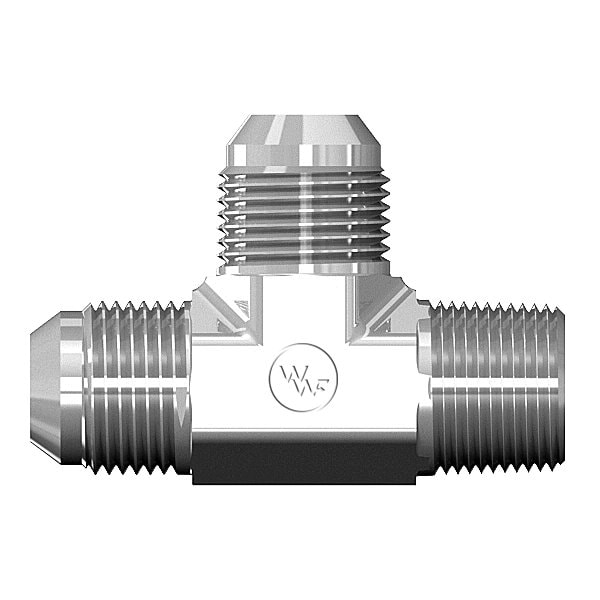

Male JIC to Male Pipe to Male JIC Run Tee
Mfr # F5755X10X08X10
Zoro # G703654996
product price: $6.99
/ea
Sold in multiples of 2 for $13.98
$13.98
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Fitting Thread Size 1 7/8-14
- Material Steel
- Hex Size 0.875
- Fitting Thread Type 1 JIC 37 Degrees Flare
- Fitting Thread Size 2 1/2-14
Product Information
- Brand World Wide Fittings
- MFR # F5755X10X08X10
- Zoro # G703654996
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
| Fitting Thread Size 1 | 7/8-14 |
| Hex Size | 0.875 |
| Fitting Thread Size 2 | 1/2-14 |
| Hex Size (mm) | 22.225 |
Details
| Material | Steel |
| Fitting Thread Type 1 | JIC 37 Degrees Flare |
| Fitting Thread Type 2 | NPT |
| Standards | Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications). |
| Weight | 0.36 |
| End 3 Thread | 7/8-14 |
| Adapter Type | Tee Adapters |
| End 2 Connection Type | Male |
| End 1 Connection Type | Male |
| End 3 Style | JIC 37° Flare |
| Body Material | Steel |
| End 3 Connection Type | Male |
