Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

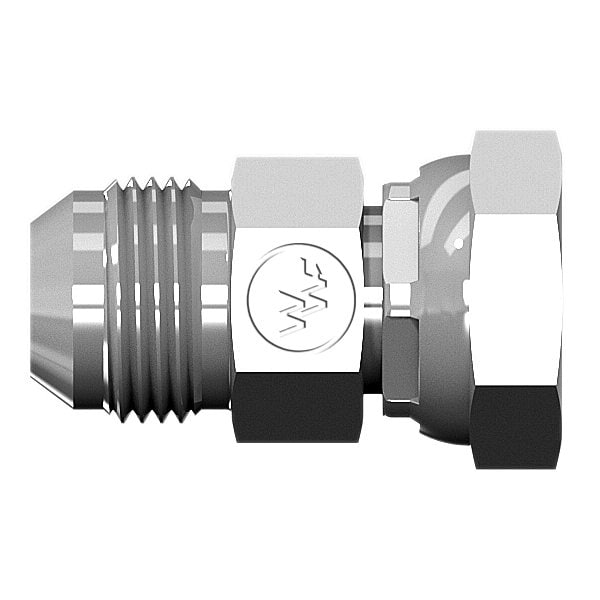

Male JIC to Female British Standard Pipe Parallel Swivel Straight
Mfr # 7004X08X08
Zoro # G703656358
product price: $6.99
/ea
Sold in multiples of 2 for $13.98
$13.98
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Fitting Thread Size 1 3/4-16
- Overall Length 1.7
- Hex Size 0.866
- Standards International conversion fittings meet SAE J514, SAE J1453, SAE 1926, and ISO 1179 specifications.
- Material Steel
Product Information
- Brand World Wide Fittings
- MFR # 7004X08X08
- Zoro # G703656358
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
| Fitting Thread Size 1 | 3/4-16 |
| Overall Length | 1.7 |
| Hex Size | 0.866 |
| Fitting Thread Size 2 | 1/2-14 |
| Hex Size (mm) | 21.9964 |
| Overall Length (mm) | 43.18 |
Details
| Standards | International conversion fittings meet SAE J514, SAE J1453, SAE 1926, and ISO 1179 specifications. |
| Material | Steel |
| Fitting Thread Type 1 | JIC 37 Degrees Flare |
| Fitting Thread Type 2 | BSPP |
| End 1 Connection Type | Male |
| Adapter Type | Elbow and Straights |
| End 1 Hex (Metric) | 27.0002 |
| End 2 Connection Type | Female |
| Body Material | Steel |
| End 1 Hex | 1.063 |
