Shop All Hydraulic Hose Adapters & Plugs
World Wide Fittings

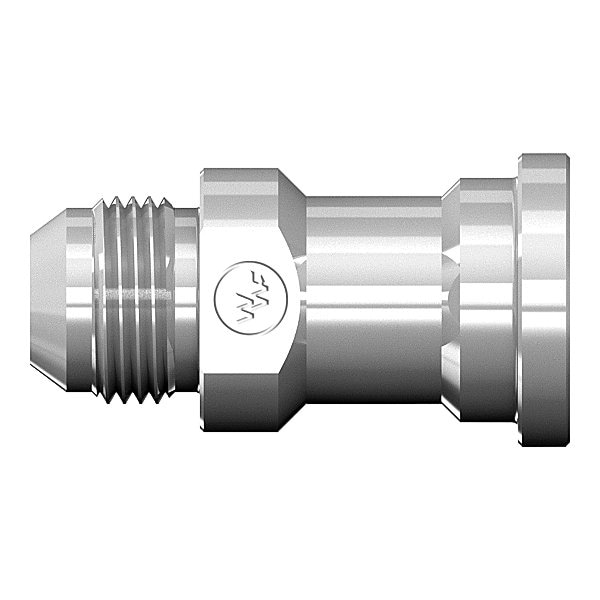

Male JIC to Code 61 Flange Straight Adapter
Mfr # 1700X16X12
Zoro # G703654576
product price: $12.89
/ea
$12.89
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Standards Four bolt flange connections meet SAE J518 specifications.
- Fitting Thread Type 1 JIC 37 Degrees Flare
- Hex Size 1.375
- Overall Length 2.75
- Fitting Thread Size 1 1-5/16-12
Product Information
- Brand World Wide Fittings
- MFR # 1700X16X12
- Zoro # G703654576
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
Hex Size | 1.375 |
Overall Length | 2.75 |
Fitting Thread Size 1 | 1-5/16-12 |
Overall Length (mm) | 69.85 |
Hex Size (mm) | 34.925 |
Details
Standards | Four bolt flange connections meet SAE J518 specifications. |
Fitting Thread Type 1 | JIC 37 Degrees Flare |
Fitting Thread Type 2 | Code 61 Flange |
Material | Steel |
Weight | 0.7724 |
End 1 Connection Type | Male |
Body Material | Steel |
Adapter Type | Elbow and Straights |
