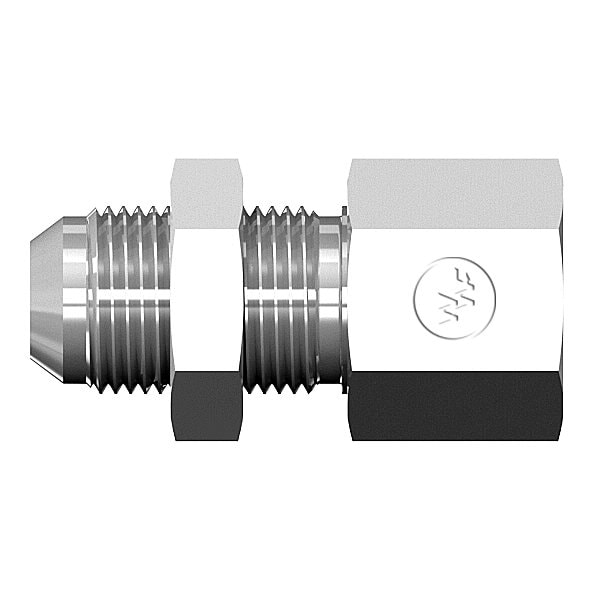

Male JIC Bulkhead to Female Pipe Straight - With Locknut
Mfr # 5275X06X04LN
Zoro # G103654046
product price: $4.59
/ea
Sold in multiples of 2 for $9.18
$9.18
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Fitting Thread Size 1 9/16-18
- Hex Size 0.813
- Material Steel
- Fitting Thread Type 2 NPT
- Standards Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications).
Product Information
- Brand World Wide Fittings
- MFR # 5275X06X04LN
- Zoro # G103654046
- Country of Origin China
- Category Hydraulic Hose Adapters & Plugs
Dimensions
Fitting Thread Size 1 | 9/16-18 |
Hex Size | 0.813 |
Overall Length | 2.17 |
Fitting Thread Size 2 | 1/4-18 |
Hex Size (mm) | 20.6502 |
Overall Length (mm) | 55.118 |
Details
Material | Steel |
Fitting Thread Type 2 | NPT |
Standards | Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications). |
Fitting Thread Type 1 | JIC 37 Degrees Flare |
Weight | 0.1656 |
End 1 Hex | 0.813 |
Body Material | Steel |
Adapter Type | Elbow and Straights |
End 1 Connection Type | Male |
End 1 Hex (Metric) | 20.6502 |
End 2 Connection Type | Female |
