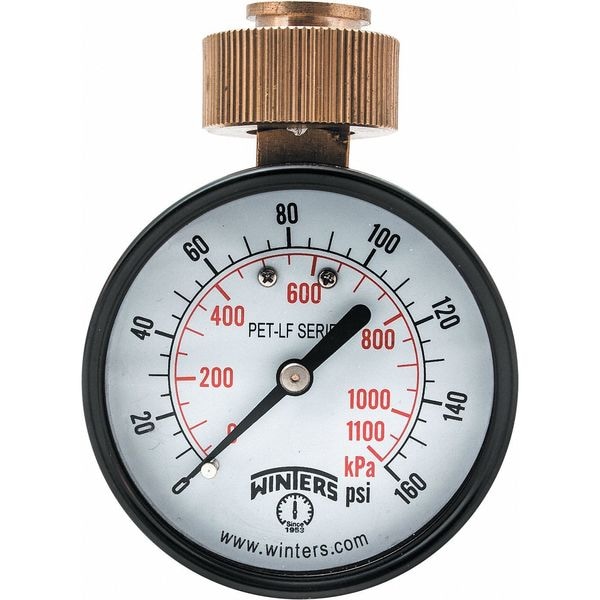

Water Test Gauge, 2.5 in., 0 to 160 psi

Mfr # PETW213LF
Zoro # G6220663

$13.95

5% off

$13.25

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Connection Size 3/4 in Female Swivel Hose Adaptor
Gauge Case Material Steel
Pressure and Vacuum Gauge Type Pressure Gauge
Calibration Certificate Included No
Liquid Filled No

See all product information

Product Information

Brand Winters
MFR # PETW213LF
Zoro # G6220663
UPC #
628311901009
Country of Origin China
Category Water Gauges

Dimensions

Connection Size	3/4 in Female Swivel Hose Adaptor
Manufacturers Warranty Length	5 yr
Gauge Connection Size	3/4 in
Gauge Nominal Dial Size	2 1/2 in
Manufacturer Warranty Length	5 yr
Process Connection Size	3/4 in
Case Depth	0.97 in
Nominal Dial Size	2 1/2 in
Case Diameter	2 447/1000 in

Details

Item	Lead-Free Pressure Gauge
Gauge Case Material	Steel
Pressure and Vacuum Gauge Type	Pressure Gauge
Calibration Certificate Included	No
Liquid Filled	No
Range	0 to 160 psi
Gauge Primary Range Units	psi
Gauge Connection Type	FGHT
Gauge Primary Range Values	0 to 160
Basic Gauge Case Material	Steel
Gauge Connection Location	Top
Gauge Panel Mountable	No
Gauge Application	Home Water Pressure Testing
Standards	ASME, CRN
NSF Certified	Yes
Pressure Gauge Type	Potable Water Line Pressure Test Gauge
Series	PET-LF
Accuracy	+/-3-2-3%
Includes Vent Plug	No
Secondary Pressure Range	0 to 1,100
Cleaned for Oxygen Service	No
Accuracy Grade	ASME B40.100 Grade B
Dry Dampening Feature	None
Lens Material	Acrylic
Dial Face Material	Aluminum
Process Connection Type	FGHT
Liquid-Filled Case	No
Accuracy Scale	Mid-Scale
IP/NEMA Rating	IP52
Sensor Material	Phosphor Bronze
Vibration Resistance	None
Hazardous Location Rating	Not Rated
Secondary Scale Units	kPa
Case Finish	Painted
Scale Type	Dual
Ambient Operating Temperature Range	32 Degrees to 150 Degrees F (0 Degrees to 65 Degrees C)
Includes Calibration Certificate	No
Dial Color	White
Process Connection Gender	Female
Sensor Type	Bourdon Tube
Process Connection Location	Top
Compatible Process Media	Air, Natural Gas, Potable Water, Water
Pressure Range Type	Pressure
Field Fillable	No
Pointer Material	Aluminum
Socket Material	Lead Free Brass
Primary Scale Units	psi
Removable Bezel	No
Process Temperature Range	-40 Degrees to 150 Degrees F
Case Color	Black
Gauge Case Liquid	None
Primary Pressure Range	0 to 160
Includes Mounting Hardware	No
Freeze Resistant Movement	No
Movement Material	Lead Free Brass
Application	Commercial, Residential

Description

Water Test Gauge, 2.5 in., Range 0 to 160 psi, Temperature Range (F) 32 Degrees to 150 Degrees , Includes 3/4 in. Female Swivel Hose Adaptor, Manufacturers Warranty Length 5 yr.
